Description

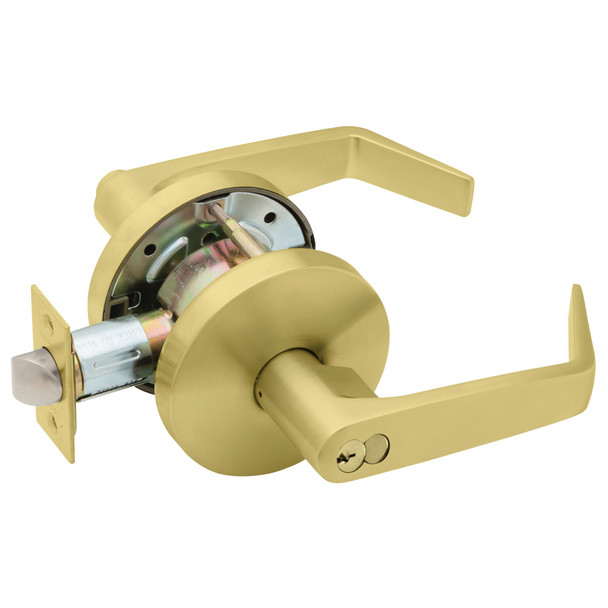

The Falcon W511HD D 606 is a commercial cylindrical lock designed for lower-traffic doorways in government, retail, industrial, and multi-family applications. This affordable lock combines solid construction with flexible configuration options, making it ideal for facilities that need reliable security without premium pricing across multiple entry points.
The W511HD D 606 accommodates door thicknesses from 1-3/8" to 1-3/4" and is compatible with standard 6-pin cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent. Backsets of 2-3/4" (standard) or 2-3/8" are available. Master keying is supported on Falcon and Schlage C keyways. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, configuration, and bulk pricing.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Mechanism: Brass or cold-formed steel parts, zinc plated and dichromated; stainless steel springs
- Cylinder: 6-pin conventional or interchangeable core; brass housing and plug; stainless steel springs
- Keyway: G keyway (standard cylinders) or A keyway (I/C cores); Schlage C available
- Latch: 1/2" stainless steel bolt projection; UL listed for 3-hour door assemblies
- Latch Face Options: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Trim: Heavy wrought brass or bronze roses over steel inserts; pressure-cast zinc levers
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
