Description

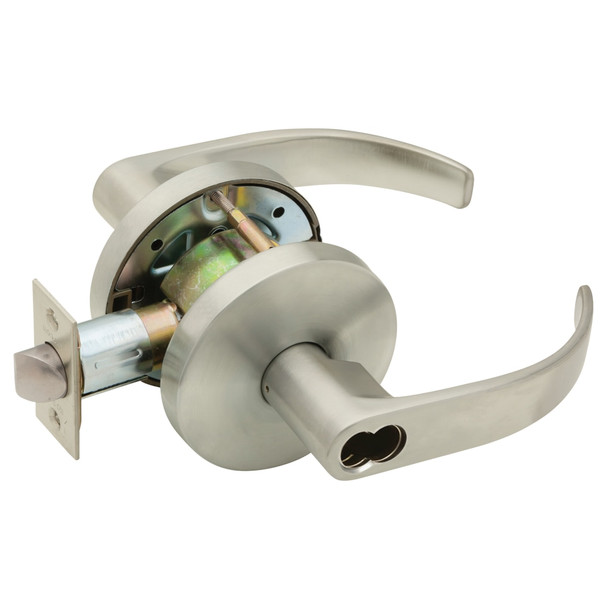

The Falcon W511BD Q 619 is an affordable cylindrical lock designed for moderate-traffic commercial applications in government, retail, industrial and multi-family buildings. It combines durable construction with flexible keying options, solving the need for reliable, cost-effective door security without premium pricing.
This lock fits standard door thickness of 1-3/8" to 1-3/4" and accepts interchangeable cores and conventional cylinders from Falcon, Schlage, Corbin-Russwin, Yale and Sargent. Master keying is available on Falcon and Schlage C keyways. As an authorized dealer, E.D. Locks provides expert guidance on keying, compatibility and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Cylinder: Six-chamber pinning, removable for rekeying
- Cylinder Housing: Solid brass with stainless steel springs
- Latch: 1/2" stainless steel bolt projection, UL listed for 3-hour fire-rated doors
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Mechanism: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Trim: Heavy wrought brass or bronze roses over steel inserts; pressure-cast zinc levers
- Keyway: G keyway standard on conventional cylinders; A keyway standard on interchangeable cores
- Keys: Two nickel silver keys furnished standard
- Handing: Non-handed
