Description

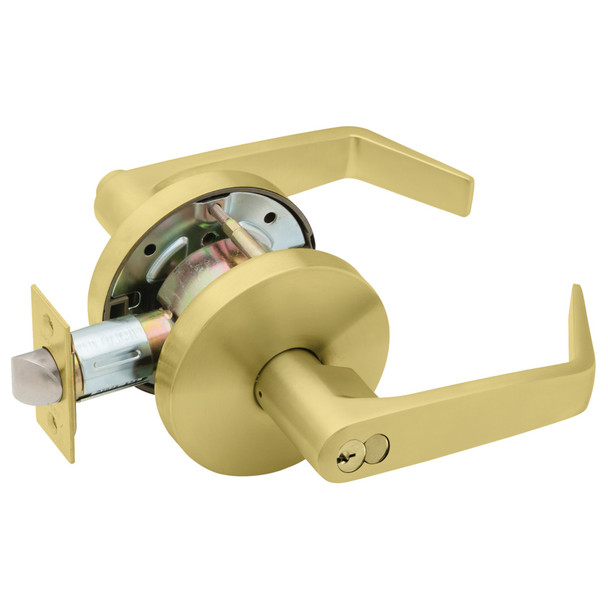

The Falcon W561HD D 606 is an affordable cylindrical lock designed for lower-traffic doorways in government, retail, industrial, and multi-family buildings. It combines solid construction with budget-friendly pricing, featuring conventional cylinders and small-format interchangeable cores compatible with other SFIC products.
This lock accommodates door thicknesses from 1-3/8" to 1-3/4" and works with standard backsets of 2-3/4" or 2-3/8". It accepts cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent, offering master keying flexibility on Falcon and Schlage C keyways. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for installation guidance and keying support.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Mechanism: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Cylinder: Six-chamber pinning, removable for rekeying; also available with 6-pin or 7-pin interchangeable cores
- Keyways: G keyway standard on Falcon cylinders; A keyway on I/C cores; Schlage C keyway available with master key option
- Latch: 1/2" stainless steel bolt projection, UL listed for 3-hour fire-rated doors
- Latch Face: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Keying: Two nickel silver keys furnished standard
- Handing: Non-handed
- Compatible Cylinders: Falcon, Schlage, Corbin-Russwin, Yale, Sargent
