Description

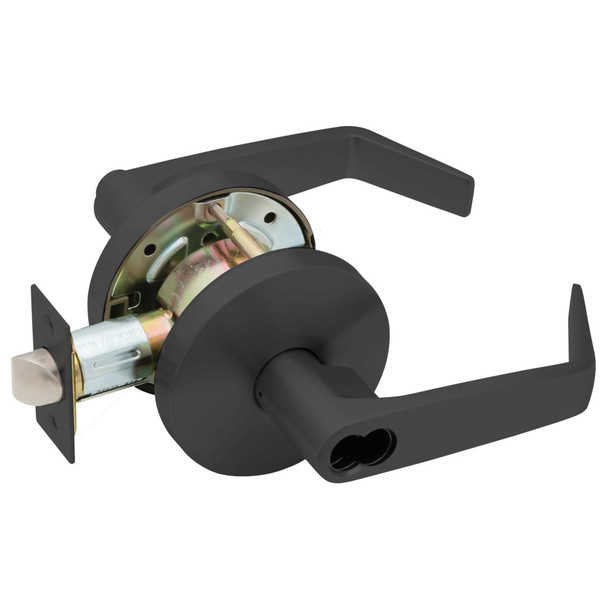

The Falcon W561HD D 622 is a commercial cylindrical lock designed for government, retail, industrial, and multi-family properties where an affordable, reliable solution is needed for lower-traffic doorways. This non-handed lock accommodates standard door thicknesses of 1-3/8" to 1-3/4" and features brass or cold-formed steel construction with zinc plating for rust resistance, making it ideal for cost-conscious facility managers.
Compatible with both Falcon standard cylinders and SFIC interchangeable cores from other manufacturers including Schlage, Corbin-Russwin, Yale, and Sargent, the W561HD offers flexible keying options including master keying on Falcon and Schlage C keyways. As an authorized E.D. Locks dealer, we provide expert guidance on cylinder selection, backset configuration, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Mechanism: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Cylinder: Six-chamber pinning, removable for rekeying; 6- or 7-pin interchangeable core available
- Keyways: G keyway standard on Falcon cylinders; A keyway on I/C cores; Schlage C available
- Latch: 1/2" stainless steel bolt projection, UL listed for 3-hour fire-rated doors
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Keys Furnished: Two nickel silver keys standard
