Description

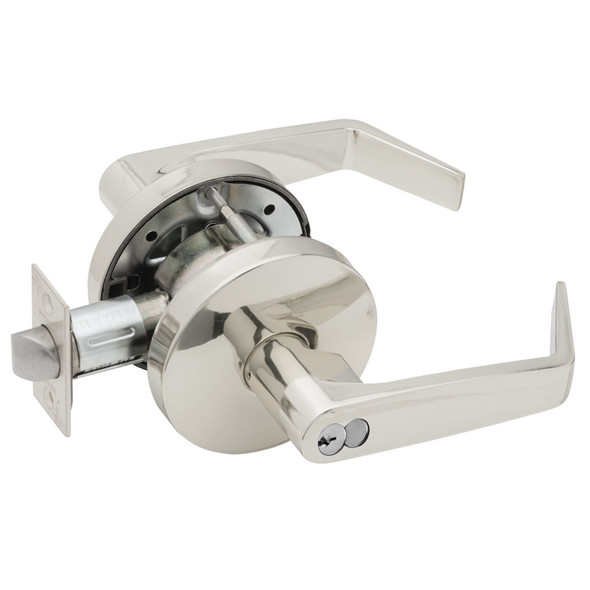

The Falcon W561HD Q 626 is a cylindrical lock engineered for commercial doors in government, retail, industrial and multi-family buildings. This affordable solution handles lower-traffic applications where reliable security meets budget constraints, featuring brass and stainless steel construction for durability and corrosion resistance.
Compatible with standard 6-pin cylinders from Falcon, Schlage, Corbin-Russwin, Yale and Sargent, this lock suits 1-3/8" to 1-3/4" door thickness. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, masterkeying and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Mechanism: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Cylinder: 6-pin, removable for re-keying; also available with 6- or 7-pin interchangeable cores
- Cylinder Materials: Solid brass housings and plugs; stainless steel springs
- Keys: Two nickel silver keys furnished standard
- Keyways: G keyway standard on Falcon cylinders; A keyway standard on I/C cores; Schlage C available
- Latch: 1/2" stainless steel bolt projection, UL listed for 3-hour door assemblies
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Handing: Non-handed
- Trim: Wrought brass or bronze roses; pressure-cast zinc levers
