Description

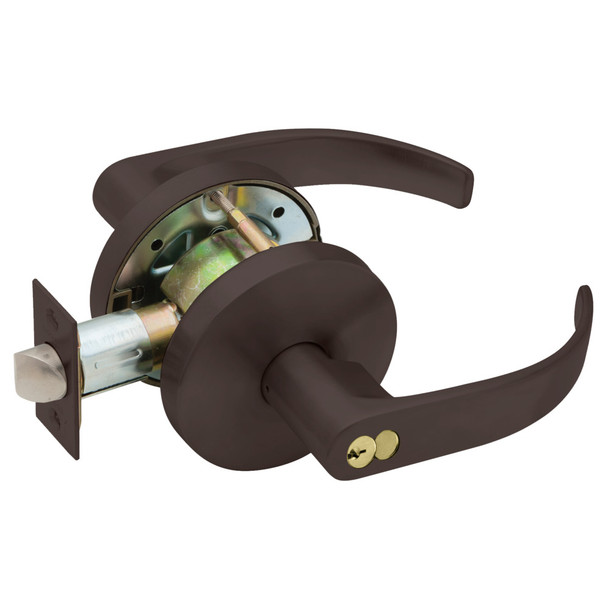

The Falcon W561HD Q 613 is an affordable cylindrical lock built for lower-traffic commercial doorways in government, retail, industrial and multi-family buildings. Non-handed design with conventional or interchangeable core cylinders accepts Falcon and Schlage C keyways, fitting most door trim styles and applications where budget and reliability matter equally.
Install on doors 1-3/8 inch to 1-3/4 inch thick with standard 2-3/4 inch backset (2-3/8 inch available). Stainless steel latch, brass cylinder housing, and zinc-plated steel components resist corrosion. As an authorized Falcon dealer, E.D. Locks offers expert configuration advice, master key planning and fast shipping. Contact sales@edlocks.com or call 1-877-207-6067 for help selecting the right keying and trim options.
Specifications
- Door Thickness: 1-3/8 inch to 1-3/4 inch standard
- Backset: 2-3/4 inch standard; 2-3/8 inch available
- Bolt Projection: 1/2 inch stainless steel
- Cylinder: 6-pin standard, 6-pin or 7-pin interchangeable core available
- Keyways: G keyway (Falcon standard cylinders), A keyway (I/C core), Schlage C optional
- Latch Faces: 1 inch x 2-1/4 inch (2-3/8 inch backset) or 1-1/8 inch x 2-1/4 inch (2-3/4 inch backset)
- Strike: 4-7/8 inch x 1-1/4 inch ANSI with curved lip
- Handing: Non-handed
- Material: Brass or cold-formed steel, zinc plated; stainless steel springs; solid brass cylinder housing
- Keys: Two nickel silver keys furnished standard
