Description

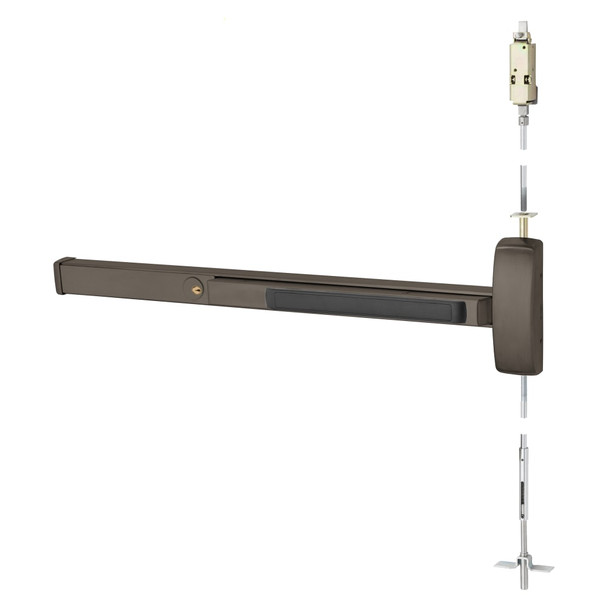

The Sargent 80 Series exit device is a heavy-duty panic bar solution designed for commercial buildings requiring ANSI/BHMA Grade 1 certified security and durability. This left-hand reverse (LHR) model with 10BE keying suits metal doors 1¾" to 2¼" thick and features modular construction with minimal moving parts for maintenance-free operation across high-traffic facilities.
The 16-AD8606F installs on doors 24" to 48" wide with four rail sizes (E, F, J, G) factory-cut to specification. Pairs with 650 top and 606 bottom strikes (panic and fire-rated). Contact ED Locks' authorized specialists at sales@edlocks.com or 1-877-207-6067 for rail sizing, electric options (alarm, beacon, photoluminescent, delayed egress, latch retraction) and installation guidance to ensure proper fit and compliance.
Specifications
- Brand: Sargent
- Model: 16-AD8606F LHR 10BE
- Series: 80 Series
- Certification: ANSI/BHMA Grade 1
- Door Thickness: 1¾" minimum, up to 2¼"
- Door Width Range: 24" to 48"
- Rail Options: E (24"-32"), F (33"-36"), J (37"-42"), G (43"-48")
- Strikes: 650 Top & 606 Bottom (Panic/Fire-Rated)
- Dogging: Hex key standard (cylinder dogging option with #41 cylinder)
- Device Centerline: 41" from finished floor (38" for elementary schools)
- Max Door Height: 96"
- Center Case Dimensions: 8⅜" x 2⅝"
- Pushbar Projection: 3" (neutral), 2⅛" (depressed)
- Top Bolt: Stainless steel
- Fasteners: Machine screws supplied
- Electric Options: Alarm, Beacon, Photoluminescent, Illuminated Touchpad, Latchbolt Monitor, Outside Lever Monitoring, Request-to-Exit Signal, Remote Latch Retraction, Delayed Egress, Electric Dogging, Electroguard Self-Contained Delayed Egress
