Description

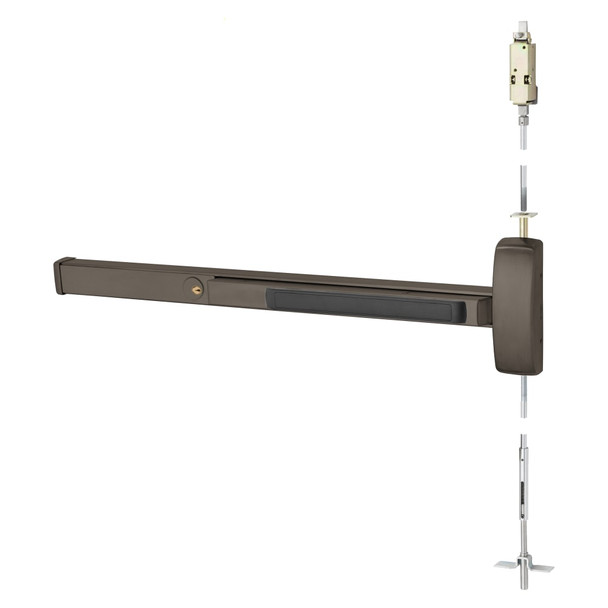

The Sargent 80 Series exit device is a heavy-duty panic bar designed for metal doors in commercial and institutional buildings. Ideal for facilities requiring ANSI/BHMA Grade 1 compliance, it delivers durable egress control with modular construction, minimal maintenance, and long-term reliability across diverse security applications.
This left-hand reverse (LHR) model suits doors 1-3/4 inches minimum thickness and is available in multiple rail sizes (E, F, J, G) to fit door widths from 24 to 48 inches. Optional electric features include delayed egress, alarmed exit, latch monitoring, and photoluminescent coatings. Contact an authorized E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for sizing guidance and configuration support.
Specifications
- Model: 16-AD8673F LHR 10BE
- Brand: Sargent
- Configuration: Rim, mortise, surface vertical, concealed vertical rod options
- Door Thickness: 1-3/4 inches (44mm) minimum; up to 2-1/4 inches with specification
- Minimum Stile Width: 4-1/2 inches (114mm)
- Rail Options: E (24-32 inches), F (33-36 inches), J (37-42 inches), G (43-48 inches)
- Maximum Door Height: 96 inches
- Device Centerline: 41 inches (1041mm) standard; 38 inches (965mm) for ADA/elementary
- Center Case Dimensions: 8-3/8 inches x 2-5/8 inches (213mm x 67mm)
- Pushbar Projection: 3 inches neutral, 2-1/8 inches depressed
- Strike: 650 Top, 606 Bottom (panic and fire-rated)
- Top Bolt: Stainless steel
- Fasteners: Machine screws supplied
- Dogging: Hex key standard (cylinder dogging available)
- Electric Options: Alarm, beacon, photoluminescent, illuminated touchpad, latch monitor, lever monitor, request-to-exit signal, remote latch retraction, delay egress, electric dogging, electroguard
