Description
The Sargent 80 Series exit device is a Grade 1 panic hardware solution engineered for metal doors in commercial, institutional, and industrial facilities. Designed for durability and low maintenance, it exceeds ANSI/BHMA standards for cycle and strength, making it ideal for high-traffic environments that demand reliable emergency egress hardware lasting the life of the building.
Available in rim and mortise configurations with multiple rail sizes (E, F, J, G) to fit door widths 24-48 inches, this device installs with supplied machine screws and supports optional features including delayed egress, alarms, and electric latch retraction. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert sizing, compatibility verification, and project support.
Specifications

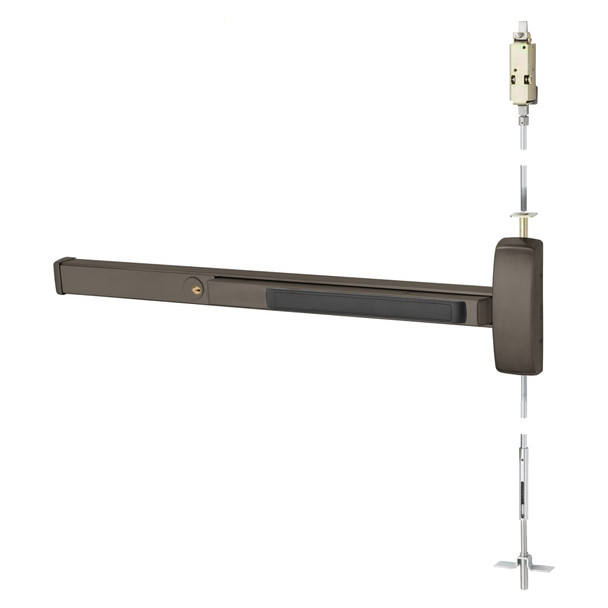

- Model: 16-AD8646F LHR 10BE
- Series: Sargent 80
- Grade: ANSI/BHMA Grade 1
- Door Types: Metal doors, 1-3/4 inch minimum thickness
- Door Width Range: 24 to 48 inches
- Rail Options: E (24-32 inch), F (33-36 inch), J (37-42 inch), G (43-48 inch)
- Stile Width: 4-1/2 inch minimum
- Device Centerline: 41 inches from finished floor (38 inches for accessibility)
- Max Door Height: 96 inches
- Center Case Dimensions: 8-3/8 inch x 2-5/8 inch
- Pushbar Projection (Neutral): 3 inches
- Pushbar Projection (Depressed): 2-1/8 inches
- Top Bolt: Stainless steel
- Strikes: 650 top and 606 bottom (panic and fire rated)
- Dogging: Hex key standard; cylinder dogging available
- Electric Options: Alarm, beacon, photoluminescent, illuminated touchpad, latchbolt monitor, lever monitoring, request-to-exit, remote retraction, delayed egress, electric dogging, electroguard
