Description

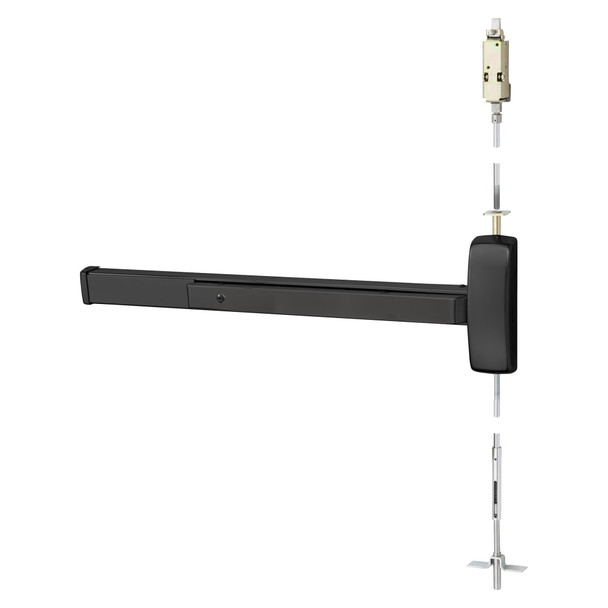

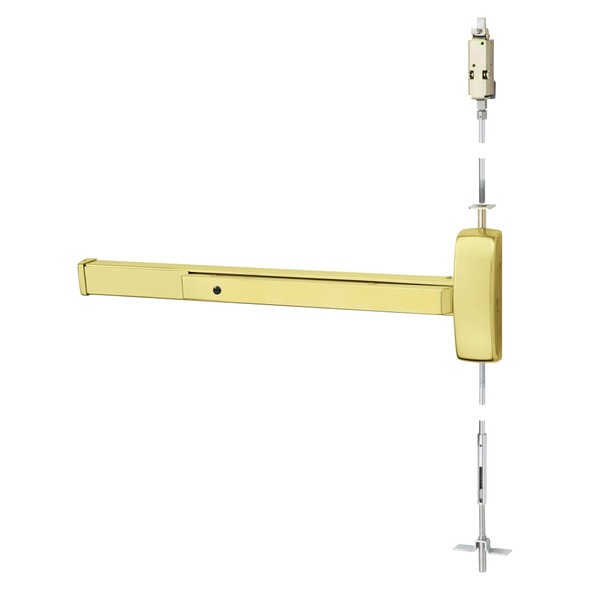

The Sargent 80 Series exit device is a heavy-duty panic bar designed for metal doors requiring Grade 1 security and reliability throughout the building's lifecycle. Ideal for commercial facilities, schools, and high-traffic environments, this rim-mounted device provides maintenance-free operation with modular construction and few moving parts, easily exceeding ANSI/BHMA Grade 1 cycle and strength requirements.
This left-hand reverse (LHR) model is factory-cut and ready for 20D application. Choose from E, F, J, or G rails based on your door width (24-48 inches). Compatible with 650 top and 606 bottom strikes; optional electric features include delayed egress, alarmed exit, and latch retraction. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for sizing guidance and free installation support.
Specifications
- Brand: Sargent
- Model: 80 Series MD8640F LHR 20D
- Configuration: Rim-mounted exit device
- Door Thickness: 1-3/4 inch minimum (44mm)
- Stile Width: 4-1/2 inches minimum (114mm)
- Rail Options: E (24-32 inch doors), F (33-36 inch doors), J (37-42 inch doors), G (43-48 inch doors)
- Device Centerline: 41 inches from finished floor (standard), 38 inches (elementary schools/accessibility)
- Center Case Dimensions: 8-3/8 inch x 2-5/8 inch (213mm x 67mm)
- Pushbar Projection: 3 inches neutral (76mm), 2-1/8 inches depressed (54mm)
- Top Bolt: Stainless steel
- Dogging: Hex key standard; cylinder dogging available (specify 16-)
- Strike: 650 Top Strike and 606 Bottom Strike (panic and fire-rated)
- Max Door Height: 96 inches
- Max Door Opening: 120 inches (3048mm)
- Optional Features: Delayed egress, alarmed exit, electric latch retraction, photoluminescent or illuminated options
