Description

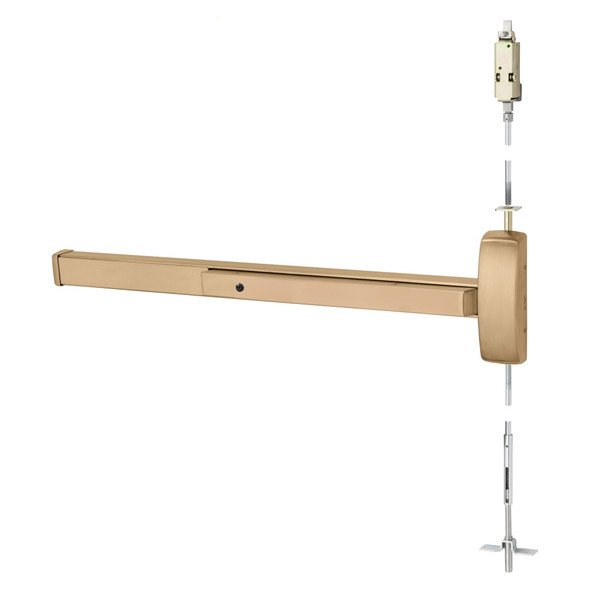

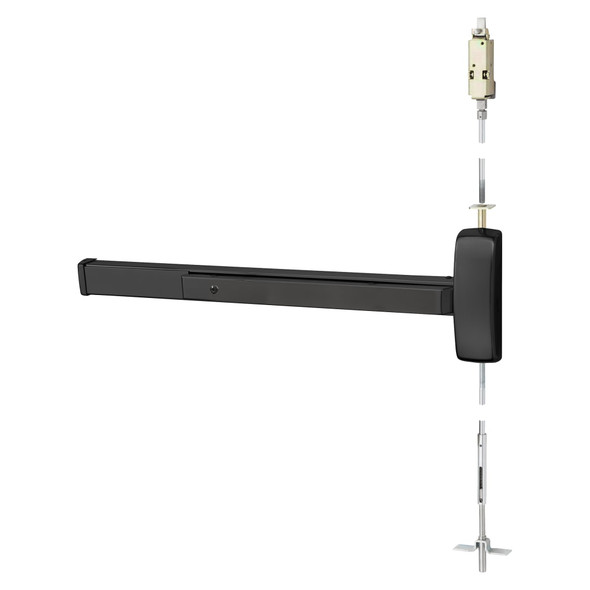

The Sargent 80 Series exit device is a heavy-duty panic bar designed for metal doors requiring Grade 1 security and reliability. Ideal for commercial buildings, schools, and facilities where code-compliant emergency egress and long-term durability are essential, this rim-mounted device exceeds ANSI/BHMA standards with modular construction and minimal maintenance needs.
This model (MD8613F LHR 20D) fits doors 1.75 inches minimum thickness with 4+ inch stile width and includes a 650 top strike and 606 bottom strike. Optional electric features like delayed egress, alarms, and latch monitoring are available. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for door width rail sizing, installation guidance, and authorized dealer support.
Specifications
- Brand: Sargent
- Model: 80 Series MD8613F LHR 20D
- Configuration: Rim Exit Device
- Door Thickness: 1.75 inches minimum, up to 2.25 inches
- Stile Width: 4.5 inches minimum
- Device Centerline: 41 inches from finished floor (standard), 38 inches (elementary schools)
- Center Case Dimensions: 8.375 inches x 2.625 inches
- Pushbar Projection: 3 inches (neutral), 2.125 inches (depressed)
- Top Bolt: Stainless steel
- Strikes Included: 650 top strike, 606 bottom strike
- Dogging: Hex key standard (non-fire rated)
- Max Door Height: 96 inches
- Rail Options: E (24-32 inch doors), F (33-36 inch), J (37-42 inch), G (43-48 inch)
- Standards: Exceeds ANSI/BHMA Grade 1
