Description

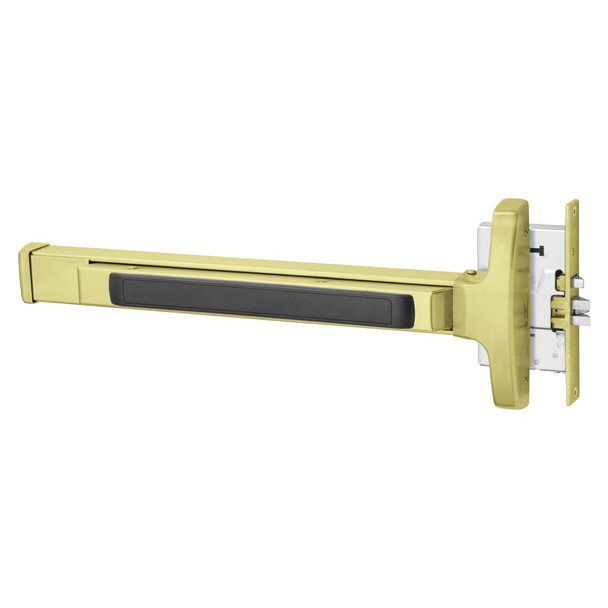

The Sargent 80 Series exit device is a heavy-duty panic bar built for commercial facilities demanding Grade 1 security and reliability. Ideal for wood or metal doors in office buildings, hospitals, schools and retail spaces, it provides code-compliant emergency egress while exceeding ANSI/BHMA standards for cycle strength and durability.
This rim-mounted right-hand reverse model fits doors 24" to 32" wide with no cutting required on 32" doors. Modular design requires minimal maintenance and supports optional delayed egress, alarm, and electric latch retraction features. Contact our security specialists at 1-877-207-6067 or sales@edlocks.com for sizing verification, keying options, and installation guidance as an authorized Sargent dealer.
Specifications
- Model: 194356-8343E RHR 4
- Configuration: Rim, Right-Hand Reverse
- Door Thickness: 1-3/4" (44mm)
- Door Width Range: 24" to 32" (61cm to 81cm)
- Minimum Stile Width: 4-1/2" (114mm)
- Standard for: Wood or Metal Doors
- Grade: Exceeds ANSI/BHMA Grade 1
