Description

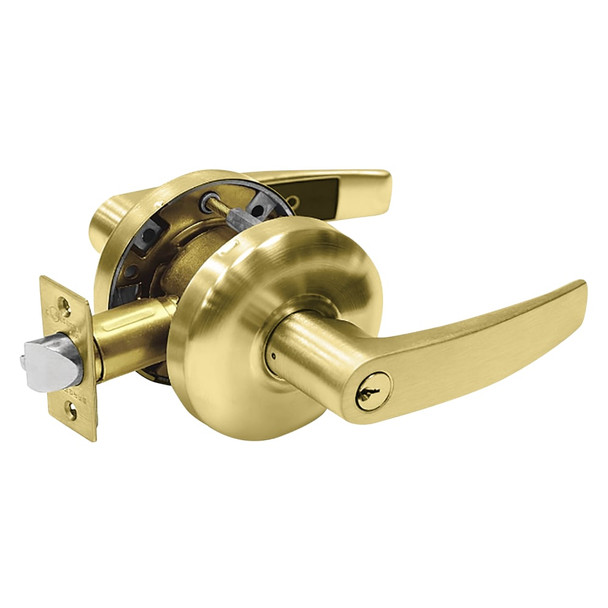

The Sargent 6500 is a standard duty key-in-lever cylindrical lock engineered to exceed ANSI A156.2 Series 4000 Grade 2 requirements. Ideal for commercial and institutional doors 1-3/8" to 1-3/4" thick, this universal-hand lock delivers reliable security without handed installation complexity.
Compatible with ANSI A115.2 (161) modified bored door prep on 4-1/2" minimum stile width. Choose from six finishes and optional 2-3/8" backset. Includes two nickel silver keys and your choice of 600, 808, or 505 strike. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on finish selection and installation support as an authorized Sargent dealer.
Specifications
- Brand: Sargent
- Model: 28-65G04 KB 4
- Type: Key-In-Lever Cylindrical Lock
- Door Thickness: 1-3/8" to 1-3/4" (35-44mm)
- Standard Backset: 2-3/4" (70mm)
- Optional Backset: 2-3/8" (60mm)
- Front Plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8" (57mm x 29mm)
- Housing: Steel zinc dichromate finish
- Latch: Brass, 1/2" (13mm) throw
- Cylinder: Brass, 6 pin, LA keyway standard
- Keys Included: Two nickel silver
- Hand: Universal, not handed
- Strike Options: 600 Curved Lip (standard), 808 ANSI Curved Lip, 505 Full Lip
- Available Finishes: 3, 4, 10, 10B, 26, 26D
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile: 4-1/2" (114mm)
- ANSI Grade: 2
