Description

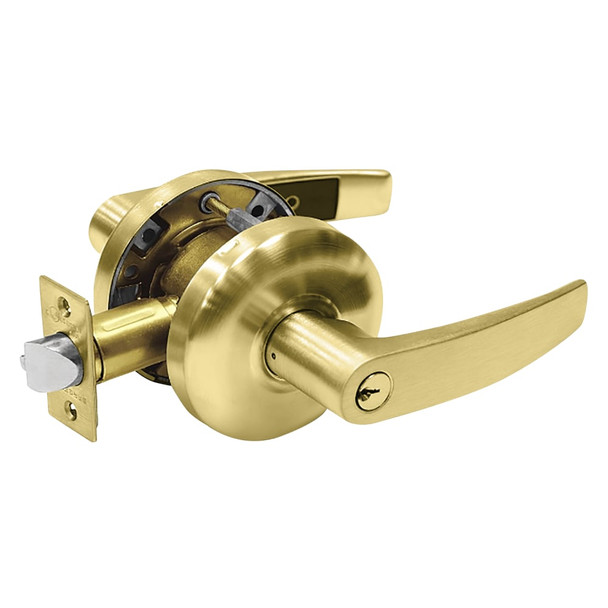

The Sargent 6500 Series is a standard-duty key-in-lever cylindrical lock engineered to exceed ANSI A156.2 Grade 2 requirements. Designed for commercial and institutional doors 1 3/8" to 1 3/4" thick, it delivers reliable security and smooth operation for high-traffic entryways where consistent performance matters.
This lock fits ANSI A115.2 (161) modified door preparations with a 4 1/2" minimum stile. Strike options include 600 Curved Lip in brass or stainless steel, plus 808 ANSI or 505 Full Lip alternatives. As an authorized Sargent dealer, E.D. Locks provides expert guidance on keying, hand selection, and finish choices. Contact sales@edlocks.com or 1-877-207-6067 for specification details and fast shipping.
Specifications
- Brand: Sargent
- Model: 28-65G37 KB 4
- Series: 6500 Line
- Type: Key-in-Lever Cylindrical Lock
- Grade: ANSI A156.2 Series 4000 Grade 2
- Door Thickness: 1 3/8" to 1 3/4" (35mm to 44mm)
- Backset: 2 3/4" (70mm) standard; 2 3/8" (60mm) optional
- Front Plate: Wrought brass and stainless steel, 2 1/4" x 1 1/8"
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway standard
- Hand: Universal, not handed
- Keys: Two nickel silver
- Strike Options: 600 Curved Lip (brass or stainless), 808 ANSI Curved Lip, 505 Full Lip
- Available Finishes: 3, 4, 10, 10B, 26, 26D
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile: 4 1/2"
