Description

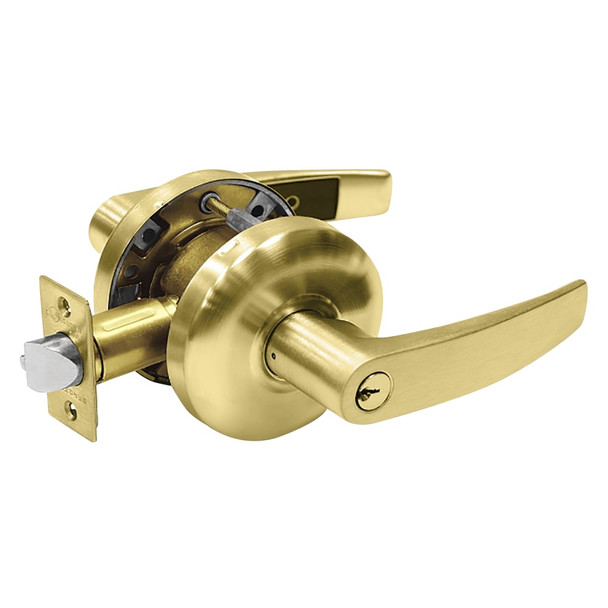

The Sargent 6500 Series is a standard-duty key-in-lever cylindrical lock engineered to meet ANSI A156.2 Grade 2 requirements. Ideal for commercial and institutional facilities, this lock provides reliable access control on interior and exterior doors from 1-3/8" to 1-4" thick, solving the need for affordable, durable keyed entry without compromising security.
Universal hand installation fits either side of the door, and the 2-3/4" backset is standard (2-3/8" optional). Compatible with ANSI A115.2 Modified door prep and available in multiple finishes and strike options. E.D. Locks offers expert guidance on backset selection, finish matching, and keying coordination—contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support on your project.
Specifications
- Brand: Sargent
- Model: 28-65G05 KB 4
- Grade: ANSI A156.2 Series 4000 Grade 2
- Door Thickness: 1-3/8" to 1-3/4" (35-44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Latch Throw: 1/2" (13mm) brass
- Cylinder: Brass, 6-pin, LA keyway, includes 2 nickel silver keys
- Front Plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8" (57mm x 29mm)
- Housing: Steel with zinc dichromate finish
- Strike Options: 600 Curved Lip (brass or stainless standard), 808 ANSI Curved Lip, 505 Full Lip
- Hand: Universal (not handed)
- Finishes: 3, 4, 10, 10B, 26, 26D
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile Width: 4-1/2" (114mm)
