Description

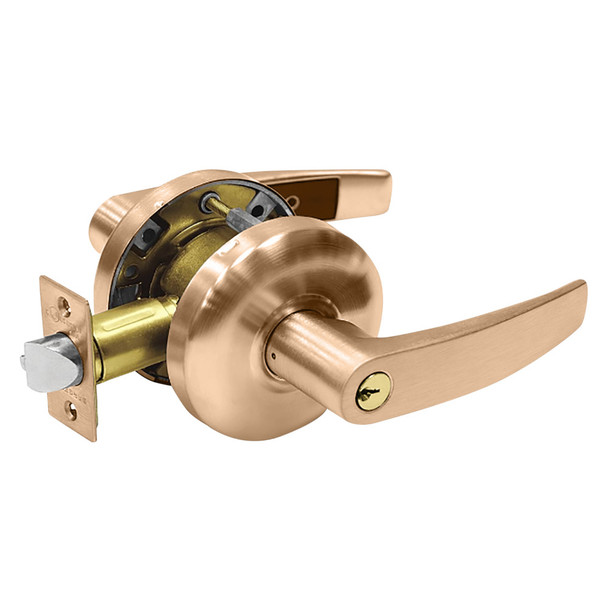

The Sargent 6500 Series is a standard-duty key-in-lever lock engineered for commercial and institutional doors. It exceeds ANSI A156.2 Series 4000 Grade 2 requirements, making it ideal for moderate-traffic entries where reliable keyed access and security are essential. Universal hand design fits left or right applications.
Compatible with 1-3/8" to 1-7/4" thick doors, this lock features a brass 1/2" throw latch, 6-pin cylinder with LA keyway standard, and choice of strike styles (600 Curved Lip, 808 ANSI, or 505 Full Lip). Installation follows ANSI A115.2 Modified specifications. As an authorized Sargent dealer, E.D. Locks provides expert guidance on backset options, finishes, and keying. Contact sales@edlocks.com or 1-877-207-6067 for assistance with your application.
Specifications
- Brand: Sargent
- Model: 6500 Series
- Grade: ANSI A156.2 Series 4000 Grade 2
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" standard; 2-3/8" optional
- Latch Throw: 1/2" brass
- Cylinder: 6-pin, LA keyway, brass
- Keys Supplied: Two nickel silver
- Hand: Universal
- Front Plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Strike Options: 600 Curved Lip (brass or stainless), 808 ANSI Curved Lip, 505 Full Lip
- Available Finishes: 3, 4, 10, 10B, 26, 26D
- Door Prep: ANSI A115.2 Modified
- Minimum Stile: 4-1/2"
