Description

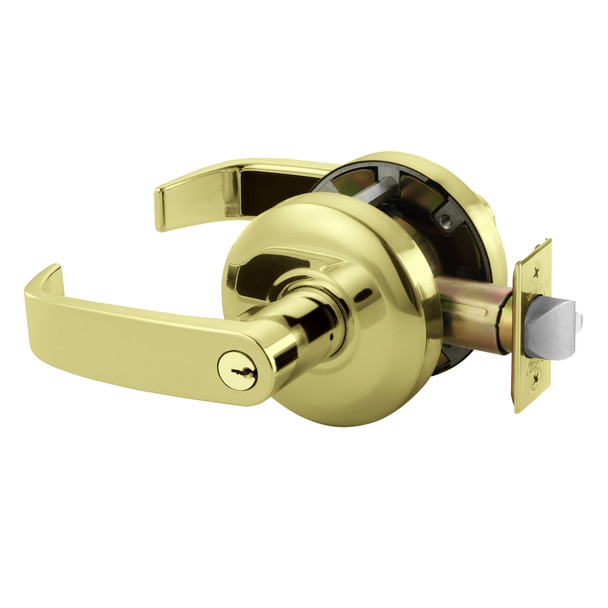

The Sargent 6500 is a standard-duty key-in-lever cylindrical lock built for interior and passage doors. It exceeds ANSI A156.2 Series 4000 Grade 2 requirements and fits doors 1-3/8" to 1-3/4" thick, making it ideal for commercial and institutional applications where reliable, code-compliant security is essential.
This universal-hand lock installs on standard 2-3/4" backset (2-3/8" optional) with ANSI A115.2 161 door prep. The 6-pin brass cylinder comes keyed with two nickel silver keys in LA keyway standard. As an authorized Sargent dealer, E.D. Locks provides expert guidance on backset selection, finish options, and strike compatibility. Contact our team at sales@edlocks.com or 1-877-207-6067 for assistance.
Specifications
- Brand: Sargent
- Model: 28-65G05 KL 3
- Standard Duty, ANSI A156.2 Series 4000 Grade 2
- Door Thickness: 1-3/8" to 1-3/4"
- Backset: 2-3/4" standard (2-3/8" optional)
- Housing: Steel, zinc dichromate
- Front: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway, includes 2 keys
- Hand: Universal
- Finishes: 3, 4, 10, 10B, 26, 26D
- Strike: 600 Curved Lip standard (brass or stainless steel)
- Door Prep: ANSI A115.2 (161)
- Minimum Stile: 4-1/2"
