Description

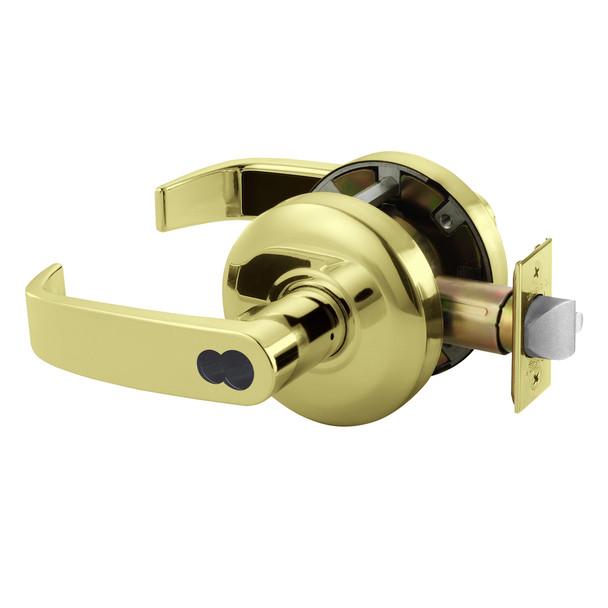

The Sargent 6500 is a standard-duty key-in-lever lock built to ANSI A156.2 Series 4000 Grade 2 specifications. Ideal for office buildings, retail spaces, and commercial facilities, this cylindrical lock delivers reliable access control on doors 1-3/8" to 1-3/4" thick. Universal hand design simplifies installation across multiple door configurations.
Compatible with ANSI A115.2 bored lock preparations and available in multiple finishes and strike options to match your security requirements. As an authorized Sargent dealer, E.D. Locks offers expert guidance on keying, finish selection, and compliance. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for specification confirmation and fast shipping on orders over $450.
Specifications
- Door thickness: 1-3/8" (35mm) to 1-3/4" (44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Cylindrical housing: Steel zinc dichromate finish
- Front: Wrought brass and stainless steel; 2-1/4" x 1-1/8"
- Strike: 600 Curved Lip (brass or stainless steel standard)
- Hand: Universal, not handed
- Latch: Brass 1/2" throw
- Cylinder: Brass, 6 pin, LA keyway standard
- Keys: Two nickel silver
- Finishes: 3, 4, 10, 10B, 26, 26D
- Door prep: ANSI A115.2 (161) Modified
- Minimum stile: 4-1/2"
