Description

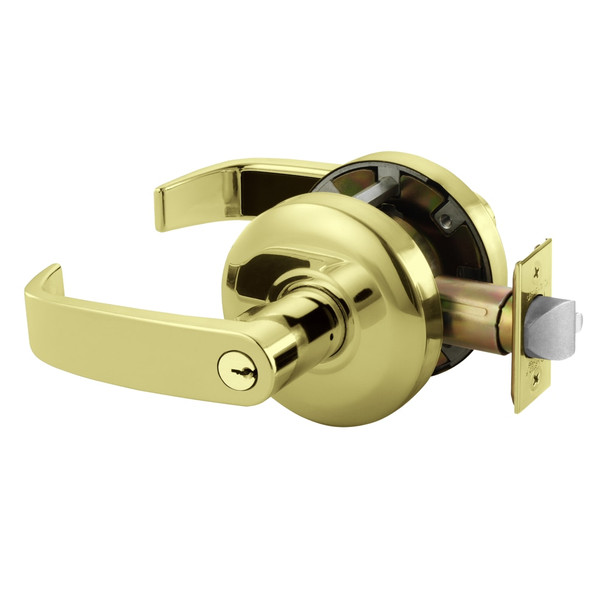

The Sargent 28-65G37 KL 3 is a Grade 2 key-in-lever cylindrical lock built to ANSI A156.2 Series 4000 standards. Designed for standard-duty commercial and institutional doors 1-3/8" to 1-3/4" thick, this universal-hand lock delivers reliable security and durability for offices, schools, and light-traffic facilities.
This lock fits doors prepped to ANSI A115.2 (161) specifications with a 4-1/2" minimum stile and accommodates a 2-3/4" backset (2-3/8" optional). Includes brass latch, steel zinc-dichromate housing, wrought brass and stainless steel front, and choice of strike options. For expert guidance on keying, master key systems, or installation support, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Sargent
- Model: 28-65G37 KL 3
- Grade: ANSI A156.2 Series 4000 Grade 2
- Door Thickness: 1-3/8" (35mm) to 1-3/4" (44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Housing: Steel zinc dichromate finish
- Front: Wrought brass and stainless steel; 2-1/4" x 1-1/8"
- Latch: Brass 1/2" throw
- Cylinder: Brass 6-pin, LA keyway standard
- Keys: Two nickel silver
- Hand: Universal (not handed)
- Strike Options: 600 Curved Lip (brass or stainless), 808 ANSI Curved Lip, 505 Full Lip
- Finishes: 3, 4, 10, 10B, 26, 26D
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile: 4-1/2"
