Description

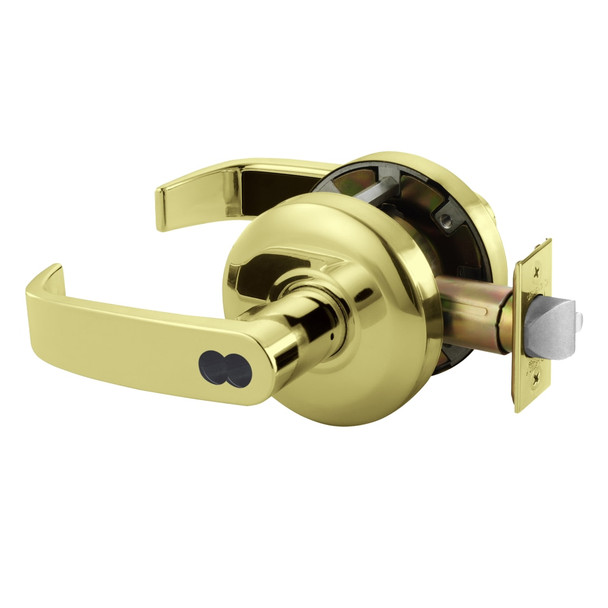

The Sargent 6500 is a standard-duty key-in-lever cylindrical lock built to ANSI A156.2 Series 4000 Grade 2. Designed for interior and passage doors, it provides reliable keyed access control on doors 1 3/8" to 1 3/4" thick. Universal hand installation simplifies setup for installers and facility managers.
This lock uses ANSI A115.2 bored hole preparation and accepts 600 curved lip, 808 ANSI curved lip, or 505 full lip strikes. Comes keyed with two nickel silver keys and a 6-pin brass cylinder. For sizing questions, strike compatibility, finish selection, or custom backset options, contact an E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Sargent
- Model: 2870-65G05 KL 3
- Standard Backset: 2 3/4" (70mm)
- Optional Backset: 2 3/8" (60mm) with 20- prefix
- Door Thickness: 1 3/8" to 1 3/4" (35-44mm)
- Front: Wrought brass and stainless steel, 2 1/4" x 1 1/8"
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway
- Keys: Two nickel silver
- Hand: Universal
- Strike Options: 600 curved lip (brass/stainless), 808 ANSI curved lip, 505 full lip
- Finishes: 3, 4, 10, 10B, 26, 26D
- Standards: ANSI A156.2 Series 4000 Grade 2, ANSI A115.2 (161)
- Minimum Stile: 4 1/2"
