Description
The Sargent 6500 Line is a Grade 2 key-in-lever lock built for standard-duty commercial and institutional applications. Designed to exceed ANSI A156.2 Series 4000 requirements, it fits doors 1-3/8" to 1-3/4" thick and solves security needs where reliable keyed access control is essential.
This cylindrical lock installs on ANSI A115.2 (161) prepared openings with a 4-1/2" minimum stile. It comes keyed alike with two nickel-silver keys and accepts common finishes including satin stainless and polished brass. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for hand selection, backset options, strike compatibility, and expert installation guidance.
Specifications
- Brand: Sargent

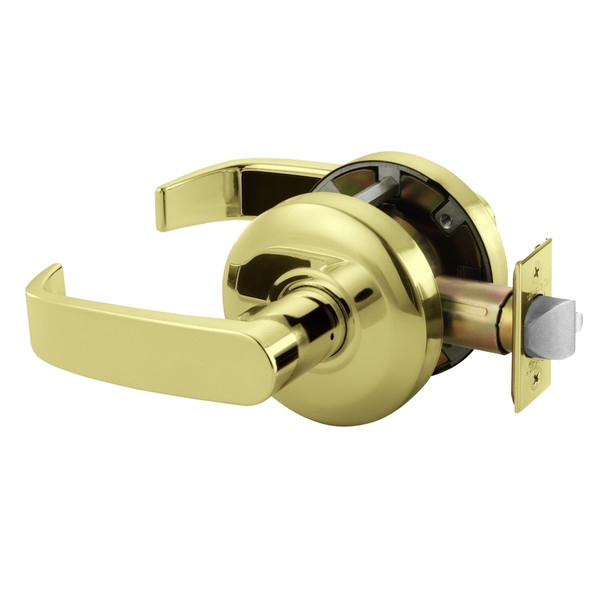

- Model: 28-65U15 KL 3
- Grade: ANSI A156.2 Series 4000 Grade 2
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Latch Throw: 1/2" (13mm)
- Front Plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Housing: Steel zinc dichromate finish
- Cylinder: Brass, 6-pin, LA keyway standard
- Keys: Two nickel-silver
- Hand: Universal, not handed
- Strike: 600 Curved Lip standard (brass or stainless steel); 808 ANSI Curved Lip or 505 Full Lip available
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile: 4-1/2" (114mm)
- Available Finishes: 3, 4, 10, 10B, 26, 26D
