Description

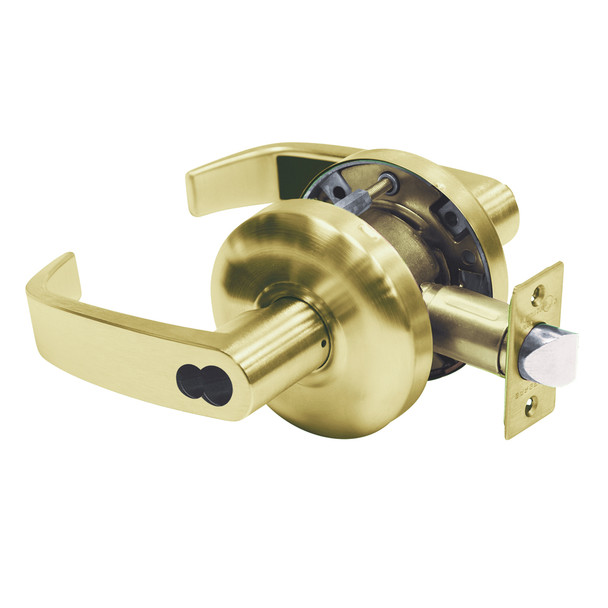

The Sargent 2860-65G05 KL is a standard-duty key-in-lever cylindrical lock built to ANSI A156.2 Series 4000 Grade 2 specifications. Designed for interior and exterior commercial doors 1-3/8" to 1-3/4" thick, it provides reliable keyed access control for offices, retail, and institutional facilities.
This lock accepts doors with 4-1/2" minimum stile width and installs with a 2-3/4" backset (2-3/8" optional). It ships with a 600 curved-lip brass or stainless steel strike, universal hand orientation, and two nickel silver keys. As an authorized Sargent dealer, E.D. Locks offers expert guidance on finish selection, strike compatibility, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Brand: Sargent
- Model: 2860-65G05 KL 4
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Housing: Steel zinc dichromate finish
- Front Plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway
- Keys: Two nickel silver
- Strike: 600 curved lip (brass or stainless steel standard)
- Hand: Universal
- Available Finishes: 3, 4, 10, 10B, 26, 26D
- Door Prep: ANSI A115.2 (161) modified
- Minimum Stile Width: 4-1/2"
- Grade: ANSI A156.2 Series 4000 Grade 2
