Description

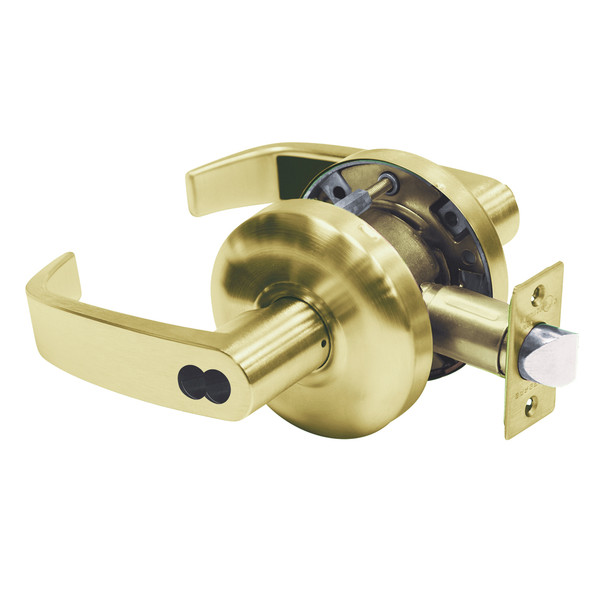

The Sargent 6500 Series is a standard-duty key-in-lever lock built to ANSI A156.2 Series 4000 Grade 2 standards. Ideal for commercial and institutional doors, it provides reliable security and durability for applications requiring keyed access control on 1-3/8" to 1-3/4" thick doors.
This cylindrical lock ships with a brass 6-pin cylinder in LA keyway, two nickel silver keys, and your choice of finish (3, 4, 10, 10B, 26, 26D). Available backsets are 2-3/4" standard or 2-3/8" optional. Contact our team at sales@edlocks.com or 1-877-207-6067 for keying options, strike selection, and expert installation guidance.
Specifications
- Brand: Sargent
- Model: 2870-65G05 KL 4
- Type: Key-In Lever, Cylindrical
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Standard Backset: 2-3/4" (70mm)
- Optional Backset: 2-3/8" (60mm)
- Front Plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway
- Keys: Two nickel silver
- Hand: Universal
- Strike Options: 600 Curved Lip (brass or stainless standard), 808 ANSI Curved Lip (28-prefix), 505 Full Lip (14-prefix)
- Finishes: 3, 4, 10, 10B, 26, 26D
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile Width: 4-1/2"
