Description

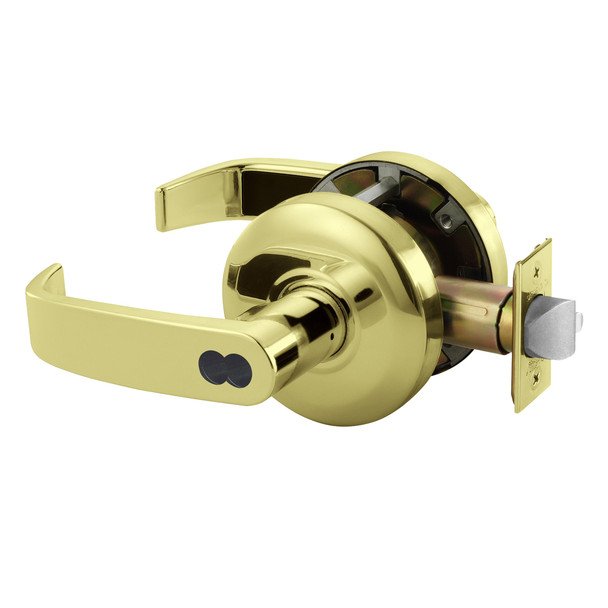

The Sargent 6500 is a standard-duty key-in-lever cylindrical lock built to ANSI A156.2 Series 4000 Grade 2 specifications. Ideal for commercial and institutional doors, this universal-hand lock fits 1-3/8" to 1-3/4" thick doors and solves the need for reliable, code-compliant access control with durable brass and stainless steel construction.
Compatible with ANSI A115.2 (161) modified bored-hole prep, the 6500 ships with two nickel silver keys and a 6-pin LA keyway cylinder. Strike options include 600 curved lip, 808 ANSI curved lip, and 505 full lip styles in brass or stainless. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for backset options, finish selection, and expert installation guidance.
Specifications
- Door thickness: 1-3/8" to 1-3/4" (35-44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway
- Keys included: Two nickel silver
- Hand: Universal
- Strike options: 600 curved lip, 808 ANSI curved lip, 505 full lip
- Finishes: 3, 4, 10, 10B, 26, 26D
- Minimum stile: 4-1/2"
- Door prep: ANSI A115.2 (161) Modified
