Description

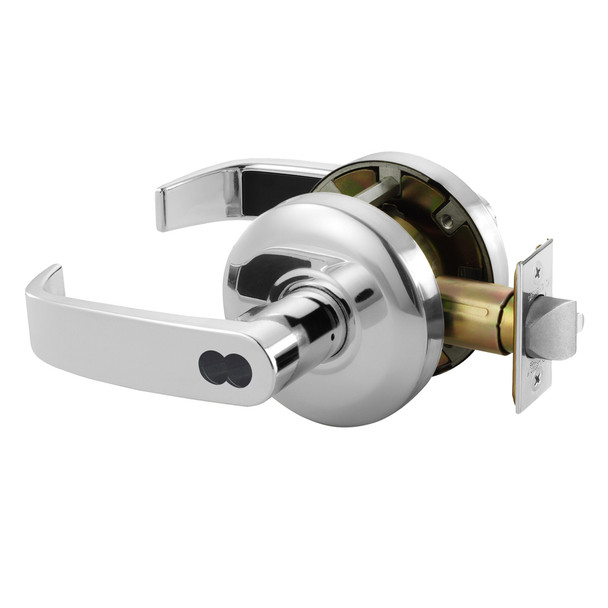

The Sargent 6500 Series is a standard-duty key-in-lever lock built for interior and light-traffic commercial doors. It meets ANSI A156.2 Series 4000 Grade 2 requirements and fits doors 1-3/8" to 1-3/4" thick. Universal hand design works on either side, making installation flexible for any opening.
This lock uses ANSI A115.2 (161) Modified bored-hole preparation and comes keyed with two nickel silver keys and a 6-pin brass cylinder in LA keyway. Sargent offers multiple backset, strike, and finish options (including stainless steel and brass fronts) to match your security and aesthetic needs. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for help selecting the right configuration and finish for your project.
Specifications
- Brand: Sargent
- Model: 2870-65G05 KL 26
- Door Thickness: 1-3/8" to 1-3/4" (35-44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway
- Keys: Two, nickel silver
- Hand: Universal
- Strike: 600 Curved Lip (brass or stainless steel standard)
- Finish: 26 (as specified in model number)
- Minimum Stile: 4-1/2"
- ANSI Standard: A156.2 Series 4000 Grade 2
