Description

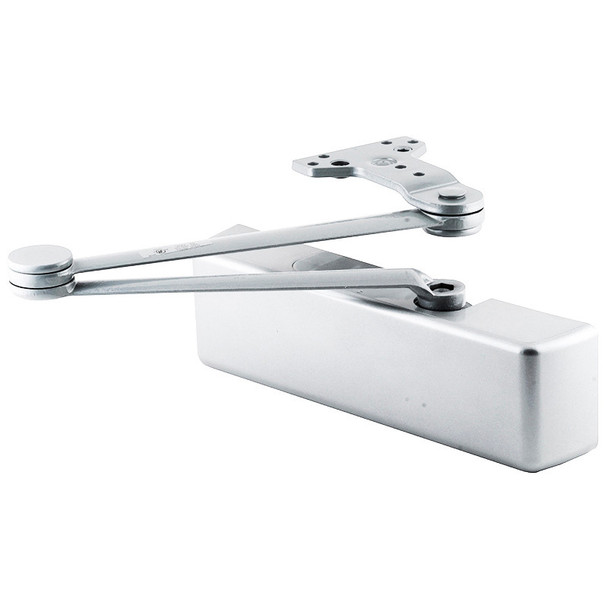

The LCN 4040XP-CUSH is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic facilities. It solves premature wear and failure common in demanding environments by featuring a 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and a V-shield seal rated 20% longer lasting than standard closers.
This right-hand model fits interior doors to 5'0" and exterior doors to 4'0", and mounts on the hinge side, top jamb, or with a parallel arm bracket on either swing. It is UL and cUL listed to ANSI A156.4 grade one and compatible with all 4040 accessories. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on finish options, installation, and SRI primer availability for corrosive environments.
Specifications
- Model: 4040XP-CUSH RH US26
- Brand: LCN
- Door Height Range: Interior to 5'0", Exterior to 4'0"
- Bearing Load: 44% increased capacity
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Seal Type: V-shield, 20% longer life
- Arm Material: Forged Steel, Double Heat Treated
- Body Material: Cast Iron
- Pinion Material: Double Heat Treated Steel
- Fluid Type: All Weather
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Handed: Right Hand (RH)
- Finish Options: Standard or custom powder coat; optional plated finish on metal cover, arm, and fasteners; optional SRI primer with powder coat
- Mount Positions: Hinge side, top jamb, or parallel arm
