Description

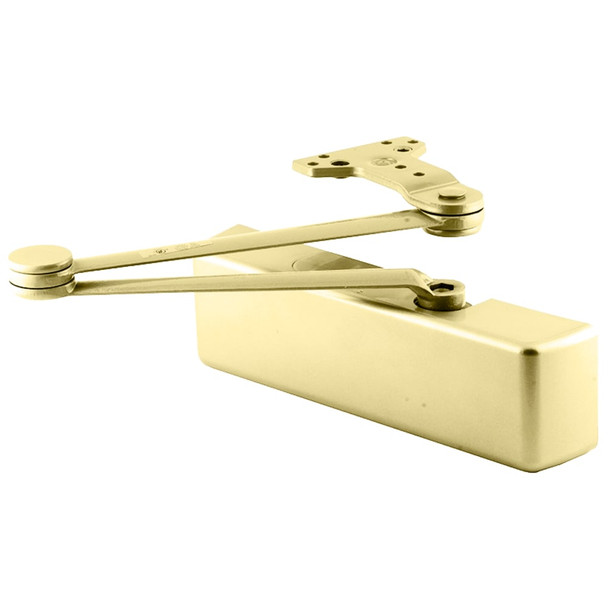

The LCN 4040XP-CUSH is a heavy-duty surface-mounted door closer built for institutional and high-traffic environments. Its reinforced pinion, expanded bearing capacity, and V-shield seal deliver superior durability and extended service life, solving the challenge of frequent door operation in demanding applications.
This right-hand closer fits interior doors to 5'0" and exterior doors to 4'0", and installs on the hinge side, top jamb, or with a parallel arm bracket. It's non-handed, adjustable, UL/cUL listed, and ADA-compliant. E.D. Locks provides expert selection and support at sales@edlocks.com or 1-877-207-6067 to ensure proper specification and installation for your facility.
Specifications
- Brand: LCN
- Model: 4040XP-CUSH RH
- Finish: US3 (bright brass)
- Pinion Journal Diameter: 3/4 inch
- Bearing Width: 5/8 inch
- Door Width (Interior): Up to 5 feet
- Door Width (Exterior): Up to 4 feet
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Seal: V-shield with 20% longer life
- Fluid: All-weather
- Handed: Non-handed (mounts on either right or left swinging doors)
- Mount Options: Hinge side, top jamb, or parallel arm
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Features: Fast Power Adjust, fast and accurate installation, non-sized adjustable cylinder
- Finish Options: Standard or custom powder coat, optional plated finish on cover and fasteners, optional SRI primer for corrosive environments
- Accessories: Compatible with all 4040 accessories
