Description

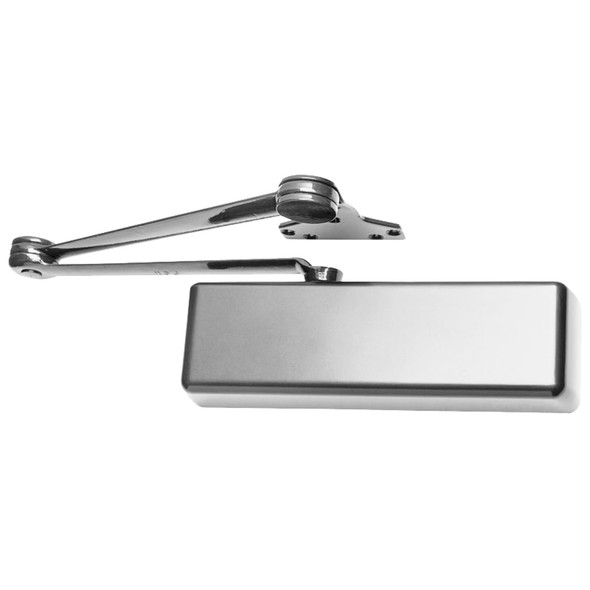

The LCN 4040XP is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic environments. It features a 44% increased bearing load capacity, strongest pinion at 3/4" journal diameter, and the new V-shield seal with 20% longer life. Ideal for facilities demanding maximum durability and reliable performance in demanding applications.
This right-hand unit mounts on hinge side, top jamb, or with parallel arm bracket on either right or left swinging doors, accommodating interior doors to 5'0" and exterior doors to 4'0". UL and cUL listed to ANSI A156.4 Grade One with ADA compliance options. Contact our experts at 1-877-207-6067 or sales@edlocks.com for finish selection, installation guidance, and free shipping on orders over $450.
Specifications
- Brand: LCN
- Model: 4040XP-HW/PA RH US26D
- Type: Surface-mounted door closer
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Bearing: 5/8" width (widest available)
- Pinion journal: 3/4" diameter
- Seal: V-shield with extended life
- Fluid: All-weather
- Handing: Right-hand, non-handed operation
- Interior door capacity: Up to 5'0"
- Exterior door capacity: Up to 4'0"
- Adjustment: Fast Power Adjust, non-sized cylinder
- Mounting: Hinge side, top jamb, or parallel arm
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- ADA: Compatible with optional requirements
- Finish options: Standard powder coat, optional custom powder coat, optional plated finish on cover/arm/fasteners, optional SRI primer for corrosive conditions
- Accessories: Compatible with all 4040 line accessories
