Description
The Sargent 80 Series rim exit device is a heavy-duty panic bar engineered for commercial facilities demanding maximum security and durability. Ideal for wood or metal doors 1-3/4" thick, this Grade 1 device features single-point latching, quiet operation, and modular construction that minimizes maintenance while meeting ANSI/BHMA and UL Fire/Panic standards.
Compatible with E-rail doors 24-32" wide; order as 31-prefix for thicker applications. Optional delayed egress, alarm, and electric latch retraction functions are available for specialized needs. As an authorized Sargent dealer, E.D. Locks provides expert guidance on configuration and installation. Contact sales@edlocks.com or call 1-877-207-6067 for sizing assistance.
Specifications

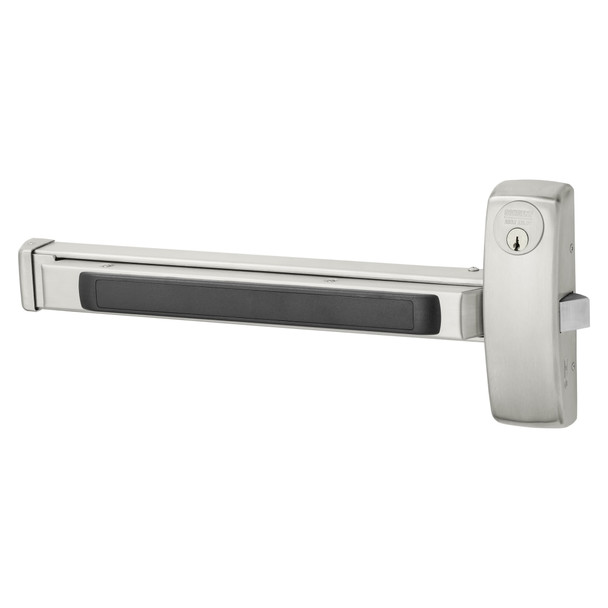

- Model: 5556-8816E RHR 32D
- Series: 80 (Grade 1)
- Configuration: Rim Exit Device
- Door Compatibility: Wood or metal, 1-3/4" (44mm) thick
- Rail Type: E Rail
- Door Width: 24-32" (61-81cm); no cutting required for 32" doors
- Latching: Single point
- Applications: Single and double doors with mullions
- Certifications: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Features: Modular construction, few moving parts, maintenance-free
