Description

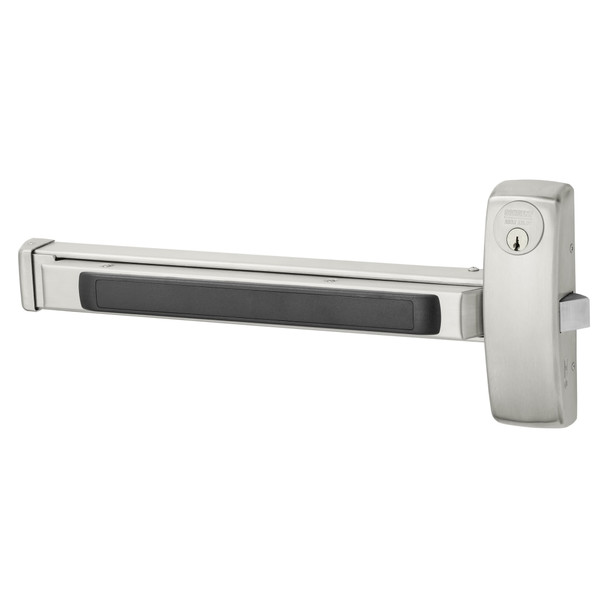

The Sargent 80 Series 1256-8816E is a heavy-duty rim exit device designed for wood or metal doors 1 3/4 inches thick. Ideal for facilities requiring durable, long-lasting security, this single-point latching device handles both single and double door applications with mullions. It delivers quiet operation, solid security, and exceeds ANSI/BHMA Grade 1 cycle and strength requirements with minimal maintenance.
Fits E Rail doors 24 to 32 inches wide without cutting required at 32 inches. Right-hand reverse (RHR) configuration in 32D finish. UL Fire and Panic listed, ANSI A156.3 Grade 1 certified. Options include delayed egress, alarmed exit, and electric latch retraction for specialized needs. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on specification, installation, and keying coordination.
Specifications
- Brand: Sargent
- Model: 1256-8816E
- Configuration: Rim Exit Device, Right-Hand Reverse (RHR)
- Finish: 32D
- Door Compatibility: Wood or Metal, 1 3/4 inches thick
- Rail Type: E Rail
- Door Width Range: 24 to 32 inches (no cutting at 32 inches)
- Latching: Single point
- Applications: Single and double doors with mullions
- Certifications: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Features: Modular construction, maintenance-free, quiet operation
