Description

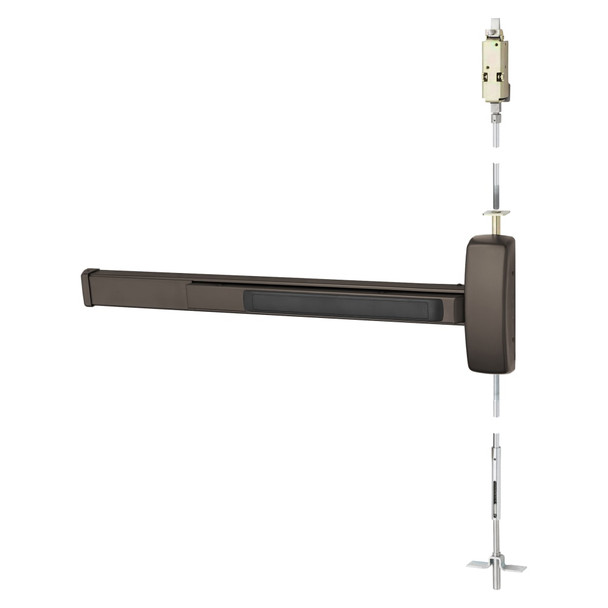

The Sargent 80 Series exit device is a Grade 1 certified panic bar for metal doors, engineered for facilities demanding durability and reliable egress control. This left-hand reverse (LHR) model suits hospitals, schools, offices, and commercial buildings where code-compliant emergency exits are non-negotiable. Its modular design minimizes maintenance while delivering decades of dependable performance.
The 5556-AD8613F installs on 1-3/4" minimum metal door stiles (4-1/2" width minimum) and accommodates door widths from 24" to 48" using factory-cut rail options. Optional electric features include alarm, delay egress, latch monitoring, and photoluminescent coatings. As an authorized Sargent dealer, E.D. Locks provides expert configuration guidance and access to the full accessory range. Contact sales@edlocks.com or 1-877-207-6067 for specification assistance.
Specifications
- Model: 5556-AD8613F LHR 10BE
- Series: 80 Series
- Certification: ANSI/BHMA Grade 1
- Configurations: Rim, mortise, surface vertical, concealed vertical rod
- Door Thickness: 1-3/4" (44mm) minimum; up to 2-1/4" with specification
- Minimum Stile Width: 4-1/2" (114mm)
- Rail Options: E (24-32" doors), F (33-36" doors), J (37-42" doors), G (43-48" doors)
- Device Centerline: 41" (1041mm) standard; 38" (965mm) for elementary schools
- Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
- Pushbar Projection: 3" (76mm) neutral, 2-1/8" (54mm) depressed
- Maximum Door Height: 96" (certain options); 120" (3048mm) maximum opening height
- Top Bolt: Stainless steel
- Dogging: Hex key standard (non-fire rated); cylinder dogging available
- Strike: 650 Top & 606 Bottom (panic and fire rated)
- Optional Features: Alarm, Beacon, photoluminescent/illuminated coatings, latch monitoring, request-to-exit, remote latch retraction, delay egress, electric dogging, Electroguard
