Description

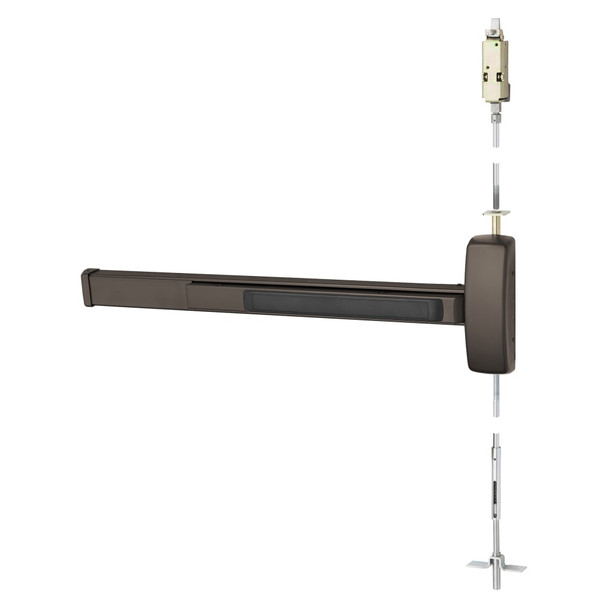

The Sargent 80 Series exit device is a Grade 1 panic bar built for metal doors requiring durability and reliable emergency egress. Ideal for commercial facilities, schools, and institutional buildings, this left-hand reverse (LHR) model features modular construction, minimal moving parts, and maintenance-free operation that exceeds ANSI/BHMA standards for cycle and strength.
Installation suits 1-3/4" minimum metal door thickness with 4-1/2" minimum stile width. Four rail sizes accommodate door widths from 24" to 48", factory-cut to specification. Optional electric features include delayed egress, alarm, latch monitoring, and remote retraction. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for compatibility verification and expert guidance on your specific application.
Specifications
- Brand: Sargent
- Series: 80 Series
- Model: 56-AD8674F
- Configuration: LHR (Left Hand Reverse)
- Finish: 10BE
- Door Types: Metal doors, 1-3/4" to 2-1/4" thick
- Minimum Stile Width: 4-1/2"
- Center Case Dimensions: 8-3/8" x 2-5/8"
- Pushbar Projection (Neutral): 3"
- Pushbar Projection (Depressed): 2-1/8"
- Device Centerline: 41" from finished floor (standard); 38" (elementary schools/accessibility)
- Maximum Door Height: 96"
- Rails Available: E (24-32"), F (33-36"), J (37-42"), G (43-48")
- Dogging: Hex key standard on non-fire-rated devices; cylinder dogging available
- Strikes: 650 Top, 606 Bottom (panic and fire-rated)
- Standards: Exceeds ANSI/BHMA Grade 1
- Optional Features: Delayed egress, alarm, beacon, photoluminescent coating, illuminated touchpad, latch monitoring, request-to-exit signal, remote latch retraction, electric dogging
