Description

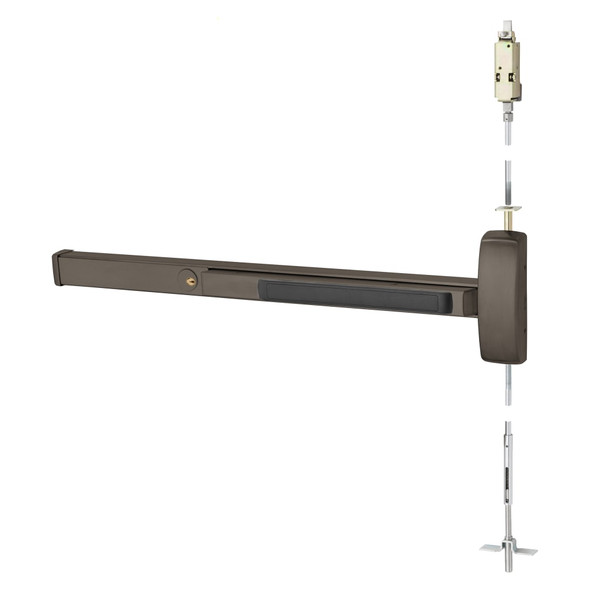

The Sargent 80 Series exit device is a heavy-duty panic hardware solution for metal doors in commercial and institutional buildings. Designed for facilities requiring Grade 1 security and durability, this rim-mounted device with left-hand reverse configuration exceeds ANSI/BHMA standards for cycle and strength, providing maintenance-free operation with few moving parts.
The AD8674F LHR 10BE fits doors 1 3/4" to 2 1/4" thick and includes a 650 top strike and 606 bottom strike for panic and fire-rated applications. Hex key dogging comes standard, and optional features include delayed egress, alarmed exit, and electric latch retraction. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for expert configuration guidance and free shipping on orders over $450.
Specifications
- Brand: Sargent
- Model: AD8674F LHR 10BE
- Configuration: Rim, Left-Hand Reverse
- Door Thickness: 1 3/4" to 2 1/4" (44mm to 57mm)
- Minimum Stile Width: 4 1/2"
- Device Centerline from Floor: 41" (1041mm)
- Center Case Dimensions: 8 3/8" x 2 5/8"
- Pushbar Projection (Neutral): 3"
- Pushbar Projection (Depressed): 2 1/8"
- Top Bolt: Stainless Steel
- Strikes: 650 Top Strike, 606 Bottom Strike
- Dogging: Hex Key Standard
- Standards: ANSI/BHMA Grade 1
- Maximum Door Height: 96"
