Description

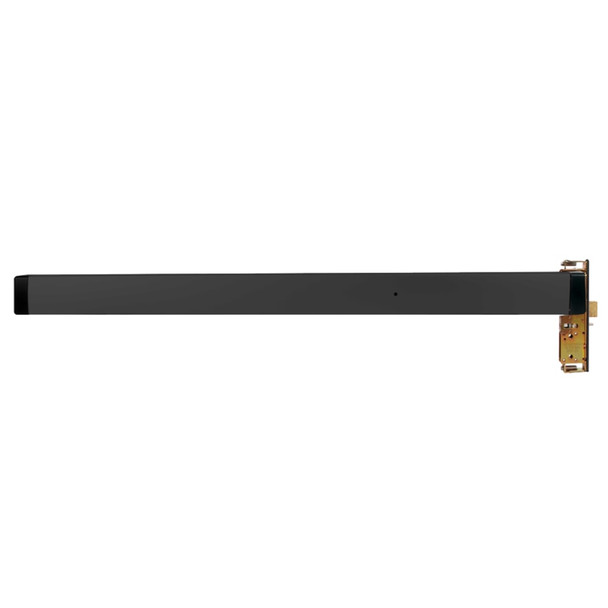

The Adams Rite 8420MLR is a life-safety exit device engineered for narrow stile aluminum door applications requiring mortise locking. Built with an extruded aluminum pushbar in multiple finishes, this non-handed device solves the challenge of combining code-compliant emergency egress with secure access control on high-traffic doors.
Compatible with door thicknesses from 1 3/4" to 2 1/4" and stile widths of 3 3/4" minimum, the 8420MLR installs on standard 8-foot doors (up to 10 feet with optional tall door kit). Accepts standard rim or mortise cylinders for keyed entry. As an authorized Adams Rite dealer, E.D. Locks provides expert configuration guidance and fast shipping. Contact sales@edlocks.com or 1-877-207-6067 for assistance selecting the right finish, pushbar length, and cylinder options.
Specifications
- Brand: Adams Rite
- Model: 8420MLR-37248
- Application: Narrow stile aluminum doors
- Door Thickness: 1 3/4" to 2 1/4"
- Stile Width Minimum: 3 3/4"
- Standard Door Height: Up to 8 feet (10 feet with 8055 Tall Door Kit)
- Bar Height Range: 30" to 44"
- Pushbar Lengths: 30", 36", 42", 48" (field cuttable)
- Material: Extruded aluminum, anodized or clad finishes
- Handing: Non-handed
- Projection: 2 15/16" projected, 1 15/16" dogged
- Dogging: Hex key standard; cylinder or electric dogging optional
- Door Thickness Range: 1 3/4" to 2 1/4"
- Cylinder Compatibility: Standard rim or mortise (MS cam)
- Cylinder Length: 1" to 1 1/4"
- Warranty: Five year limited
