Description

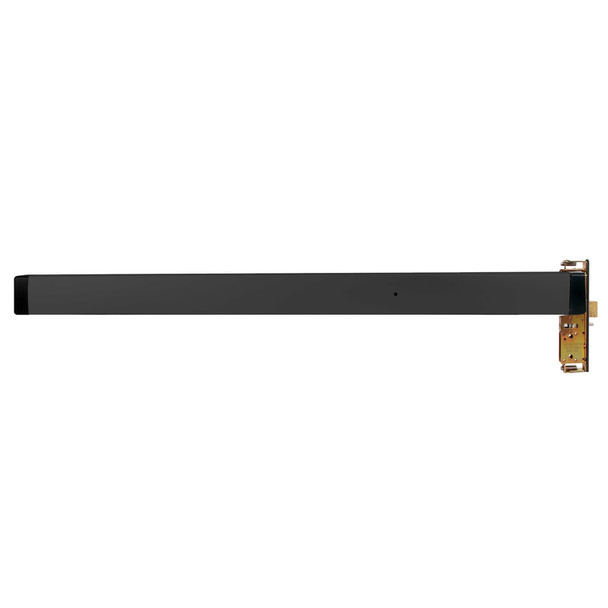

The Adams Rite 8420MLR-37230 is a life-safety exit device engineered for narrow stile aluminum doors requiring mortise locking. Built with an extruded aluminum pushbar in multiple finishes, this non-handed device solves emergency egress needs for commercial and institutional buildings while maintaining security through integrated locking mechanisms.
Compatible with door thicknesses from 1-3/4" to 2-1/4" and standard pushbar lengths of 30", 36", 42", and 48" (field-cuttable to smaller widths), the 8420MLR fits doors up to 8 feet tall. For taller applications, the 8055 Tall Door Kit is available separately. As an authorized Adams Rite dealer, E.D. Locks provides expert guidance on cylinder selection, dogging options, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- Brand: Adams Rite
- Model: 8420MLR-37230
- Type: Mortise exit device, non-handed
- Pushbar Material: Extruded aluminum, clad or anodized finish options
- Standard Pushbar Lengths: 30", 36", 42", 48" (field-cuttable)
- Bar Height Adjustment: 30" to 44"
- Maximum Door Height: 8 feet (standard); 10 feet with 8055 Tall Door Kit
- Door Thickness: 1-3/4" standard; up to 2-1/4"
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" (projected), 1-15/16" (dogged)
- Dogging Options: Hex key standard; cylinder dogging and electric dogging available
- Cylinder Compatibility: Standard rim cylinders; mortise cylinders with MS cam (1" to 1-1/4" lengths)
- Fasteners: Self-tapping screws standard; optional sex bolt kits available
- Warranty: Five year limited
