Description

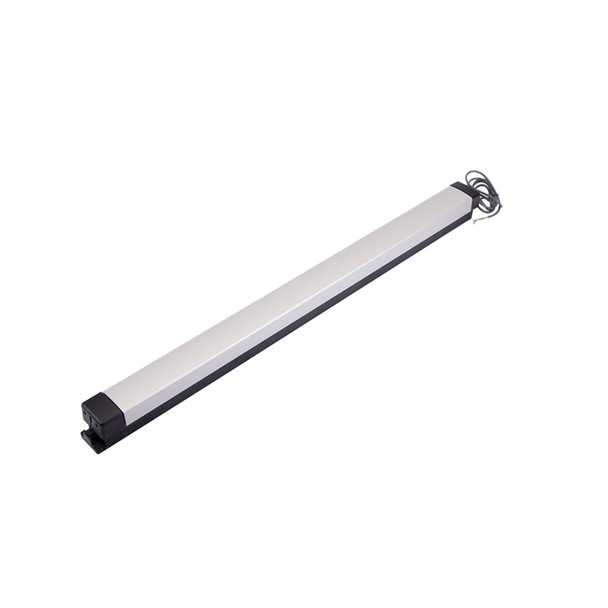

The Adams Rite 8801ELD-42-24 is a rim exit device engineered for narrow stile aluminum doors up to 42 inches wide. It features electric latch retraction with mechanical dogging, 24V operation, and an extruded aluminum pushbar. This device solves emergency egress requirements for commercial buildings while offering field-reversible lever entry trim and non-handed installation flexibility.
Compatible with doors 1-3/4" to 2-1/4" thick and up to 8 feet tall (10-foot kits available separately), this exit device accepts standard rim cylinders and optional mortise cylinders. As an authorized Adams Rite dealer, E.D. Locks provides expert configuration guidance and five-year manufacturer warranty support. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for handing, finish, and keying assistance.
Specifications
- Brand: Adams Rite
- Model: 8801ELD-42-24
- Device Type: Rim Exit Device with Electric Latch Retraction
- Pushbar Length: 42"
- Bar Height Range: 30" to 44" adjustable
- Door Compatibility: 1-3/4" to 2-1/4" thick, up to 8 ft tall
- Stile Width: Minimum 3-3/4"
- Projection: 2-15/16" fully projected, 1-15/16" dogged
- Voltage: 24V
- Material: Extruded aluminum (clad or anodized finishes)
- Dogging: Mechanical with hex key (cylinder and electric options available)
- Handing: Non-handed, field reversible
- Cylinder Compatibility: Standard rim cylinders, optional mortise cylinders (1" to 1-1/4" lengths)
- Warranty: Five year limited
