Description

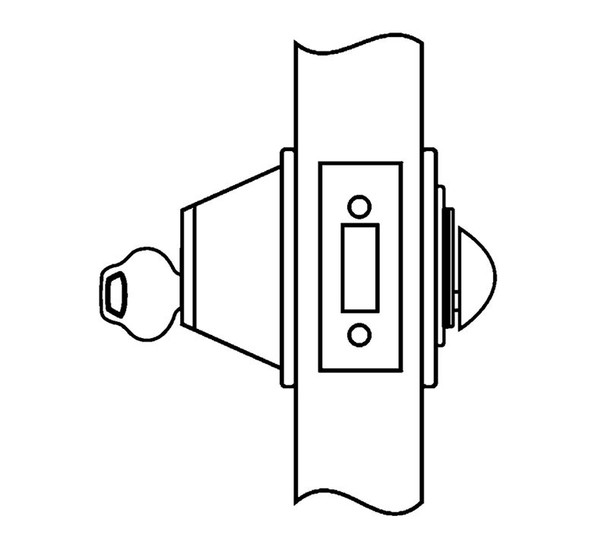

The Corbin Russwin DL3013 is a non-handed deadlock designed for standard 1-3/4" to 2-1/4" door thicknesses. Built for commercial and institutional applications, this deadlock features a hardened steel bolt with 1" throw and a solid brass cylinder, providing reliable keyed security for interior and exterior doors.
The DL3013 ships with a standard 2-3/4" backset, wrought brass or bronze front, and includes two nickel silver keys. Master keying and interchangeable core options are available. As an authorized Corbin Russwin dealer, E.D. Locks offers expert consultation on keying systems and compatibility. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for help selecting the right configuration.
Specifications
- Brand: Corbin Russwin
- Model: DL3013 605 LC
- Handing: Non-handed
- Door Thickness: 1-3/4" (44mm) to 2-1/4" (57mm) standard
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front: Wrought brass or bronze, 2-1/4" x 1-1/8"
- Deadbolt: Zinc diecast hardened steel, 1" throw, 5/8" wide x 3/4" high
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted
- Strike: 2-3/4" x 1-1/8" standard
- Keys Included: Two nickel silver
- Keying Options: Master keying, construction master keying, interchangeable core (IC), security cylinder
- Warranty: One-year limited
