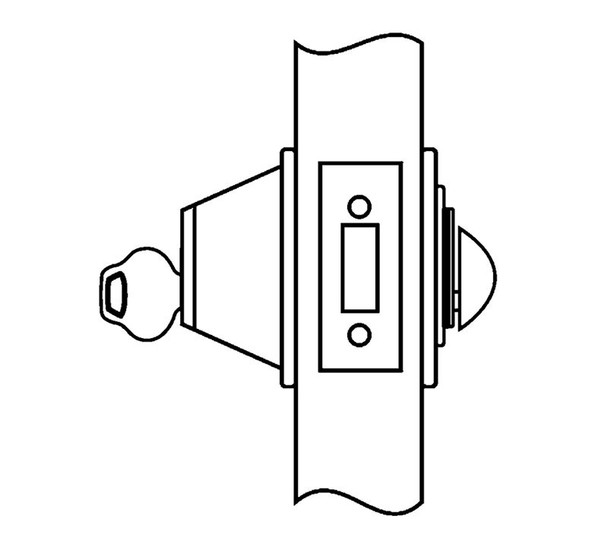

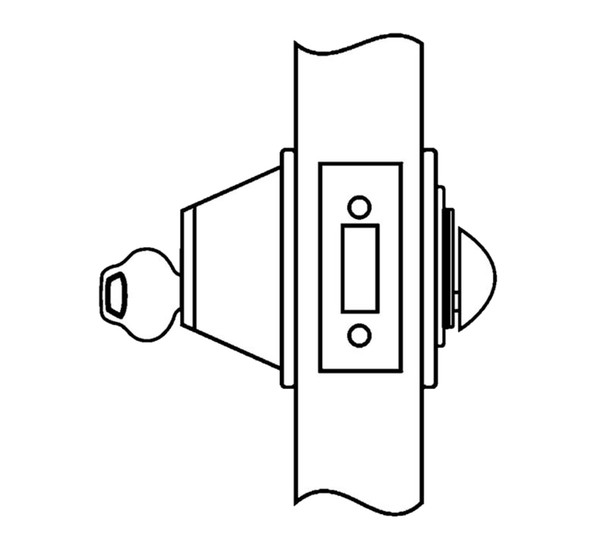

Description
The Corbin Russwin DL3013 is a non-handed deadlock designed for standard 1-3/4" and 2-1/4" doors. It delivers reliable security for commercial and institutional buildings where keyed cylinder control and consistent performance are essential. The 1" hardened steel bolt resists forced entry.
This lock accepts 6-pin cylinders in L4 keyway and ships with two nickel silver keys. Standard 2-3/4" backset and wrought brass or bronze front; optional backsets and security cylinders are available. E.D. Locks, an authorized Corbin Russwin dealer, provides expert configuration assistance at sales@edlocks.com or 1-877-207-6067 to ensure proper keying and installation for your project.
Specifications
- Handing: Non-handed
- Door Thickness: 1-3/4" (44mm) or 2-1/4" (57mm) standard
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front: Wrought brass or bronze, 2-1/4" x 1-1/8"
- Deadbolt: Zinc diecast hardened steel, 1" throw, 5/8" wide x 3/4" high
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted
- Keys: Two nickel silver standard
- Keying Options: Master keying, construction master keying, interchangeable core (IC), security, pyramid
- Strike: 2-3/4" x 1-1/8" standard
- Warranty: One-year limited
