Description

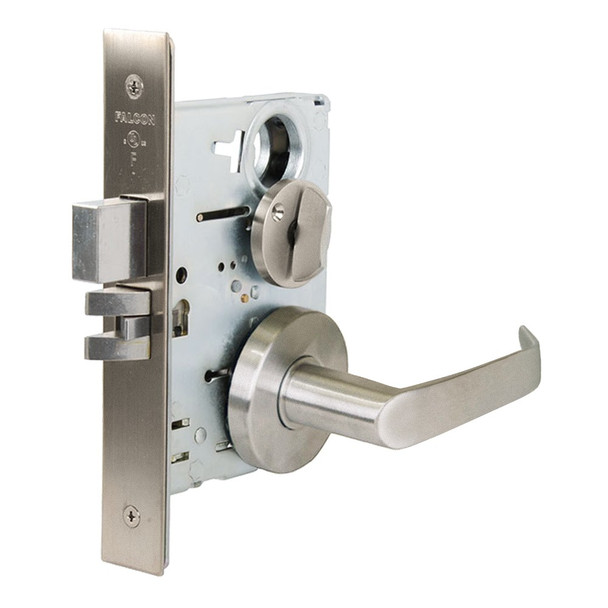

The Falcon MA301 DGM mortise lock is a high-performance commercial lock designed for offices, hospitals, education facilities, and other institutional buildings. It combines affordable pricing with durability, featuring a tough construction that withstands constant daily use without compromising security or reliability.
This lock uses an interchangeable core (SFIC compatible) for quick, field-reversible re-keying and fits standard door thicknesses from 1-3/8" to 2-1/2". It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying, handing, and finish selection guidance.
Specifications
- Brand: Falcon (Allegion)
- Model: MA301 DGM
- Finish: 630 (Stainless Steel)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" armored, adjustable for bevel
- Keying: Two nickel silver keys standard
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified Options: 12 or 24 VDC available
- Handing: Right hand standard, left hand optional, field reversible
