Description

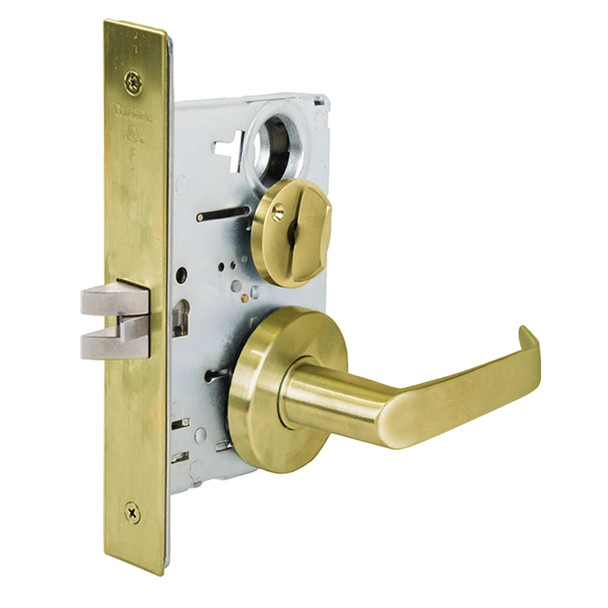

The Falcon MA321 DG 606 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. Featuring a two-piece stainless steel latch bolt with mechanical anti-friction design and a 1-inch throw dead bolt with saw-resistant rollers, it delivers dependable security and withstands constant daily use without compromise.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" and features an interchangeable core (SFIC compatible) for quick field re-keying. As an authorized Falcon/Allegion dealer, E.D. Locks offers expert installation guidance and keying support. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for compatibility verification and setup assistance.
Specifications
- Brand: Falcon
- Model: MA321 DG 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway standard; A keyway on I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified: 12 or 24 VDC available
- ANSI/BHMA: Series 1000 (156.13)
- UL Rating: 3 hour A label
- Furnished with two nickel silver keys
