Description

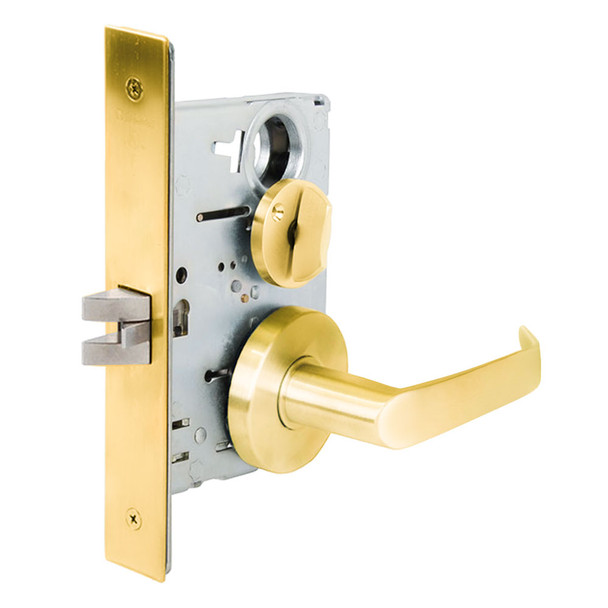

The Falcon MA321 mortise lock is a heavy-duty commercial solution for offices, hospitals, schools, and institutional buildings requiring reliable daily-use security. Built with cold-formed steel construction and hardened steel components, it withstands constant use while offering ANSI/BHMA Series 1000 performance. The interchangeable core design enables quick, tool-free re-keying without removing the lock from the door.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" and features a 2-3/4" backset with reversible handing for flexible installation. The DG 605 finish is available in multiple options. As an authorized Falcon dealer, E.D. Locks provides expert compatibility guidance and support: contact sales@edlocks.com or call 1-877-207-6067 for keying questions or to verify specifications for your project.
Specifications
- Brand: Falcon
- Model: MA321 DG 605
- Type: Mortise Lock with Interchangeable Core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin options available
- Keyways: G keyway standard (standard cylinder), A keyway standard (I/C cylinder)
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored
- Strike: Brass or stainless steel, meets ANSI A115.1
- Electrified: 12 or 24 VDC options available
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Handing: Right hand standard, left hand and field-reversible optional
