Description

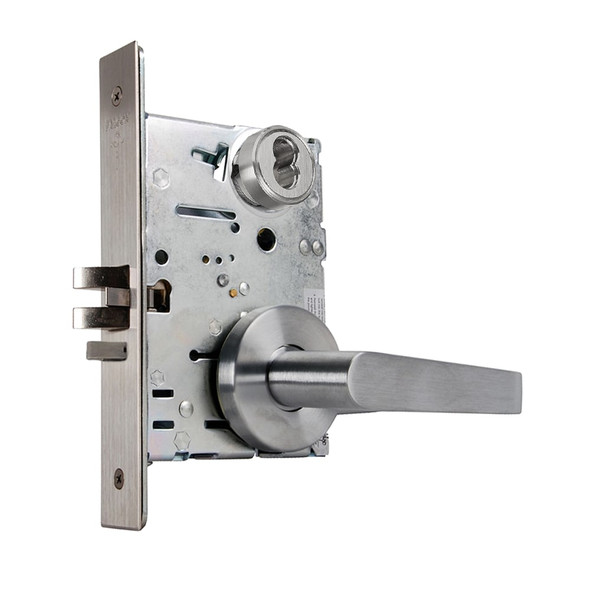

The Falcon MA381B is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. It features a two-piece stainless steel latch bolt with mechanical anti-friction design and a 1-inch throw deadbolt with saw-resistant rollers, delivering reliable security and performance through constant daily use.
This right-hand model accommodates standard door thickness of 1-3/8" to 2-1/2" and includes an interchangeable core (SFIC compatible) for quick field re-keying. Meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label standards. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert specification assistance and keying options.
Specifications
- Brand: Falcon (Allegion)
- Model: MA381B AG 630 RH
- Type: Mortise Lock with Interchangeable Core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Handing: Right Hand (reversible, left hand optional)
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on I/C core
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified Functions: Available 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Keys: Two nickel silver keys furnished standard
