Description

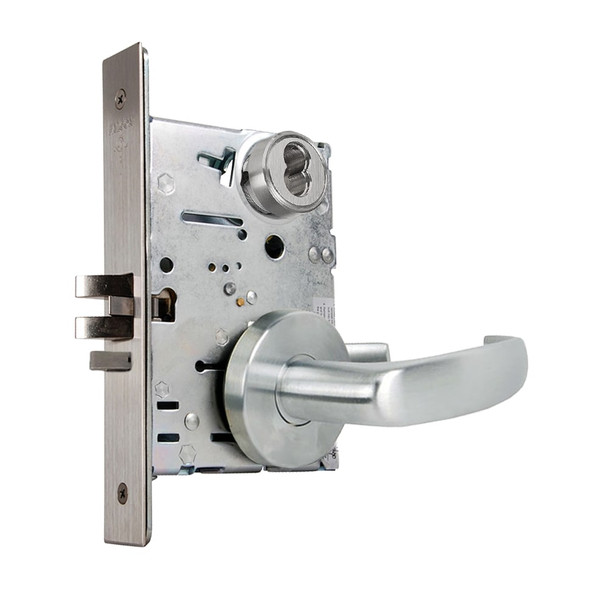

The Falcon MA381B QG mortise lock is a commercial-grade locking solution for offices, hospitals, educational facilities, and high-traffic environments. Built for dependability and constant use, this Series 1000 lock combines security with ease of maintenance through its interchangeable core design, allowing quick re-keying without removing the lock from the door.
The MA381B accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and right-hand handing (field-reversible). It features a stainless steel latch bolt, 1" dead bolt with saw-resistant rollers, and SFIC-compatible interchangeable core. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, compatibility, and installation. Contact sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Brand: Falcon (Allegion)
- Model: MA381B QG 630 RH
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Handing: Right Hand (field-reversible)
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Latch Bolt: Stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with hardened steel rollers
- Cylinder: Solid brass, 6-pin standard
- Keyway: G keyway (standard cylinder) or A keyway (interchangeable core)
- Faceplate: 1-1/4" x 8" adjustable for door bevel
- ANSI/BHMA: Series 1000 (156.13)
- UL Rating: 3 hour A label
- Finishes: 630 (Stainless Steel)
