Description

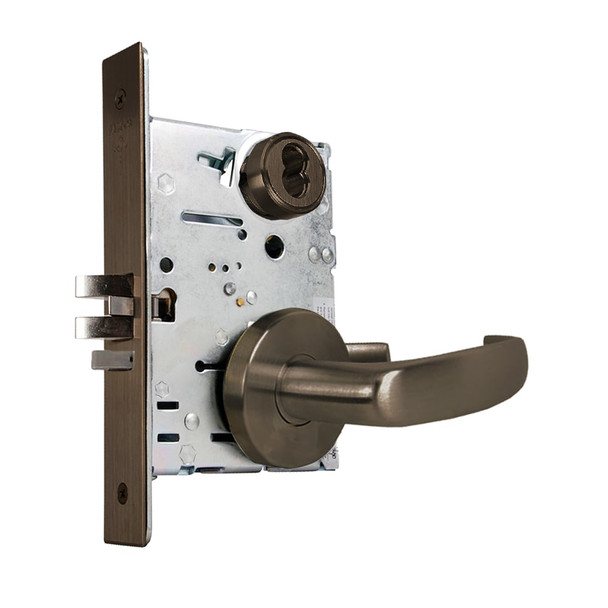

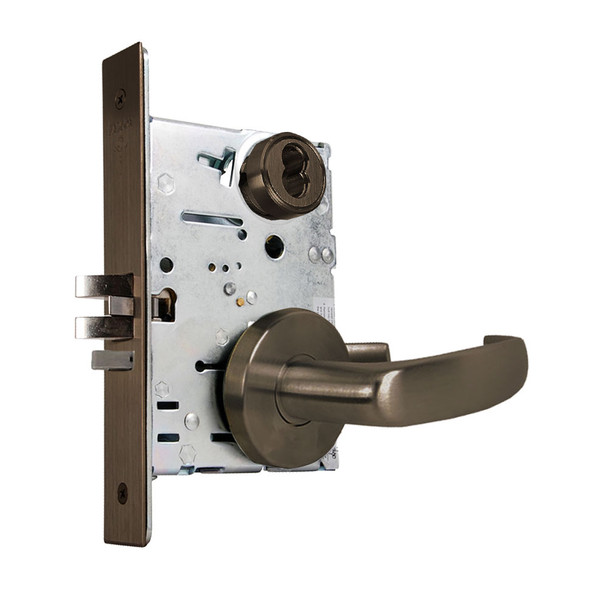

The Falcon MA381B mortise lock delivers high-performance security for commercial facilities including offices, hospitals, and educational institutions. Built for constant use without failure, this tough and dependable lock features an interchangeable core for quick re-keying and is compatible with SFIC products from other manufacturers, making retrofit projects seamless.
Engineered for standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset, this right-hand model arrives keyed and ready to install. As an authorized Falcon dealer, E.D. Locks & Security offers expert guidance on keying options, finishes, and electrified configurations. Contact our team at sales@edlocks.com or 1-877-207-6067 for specifications and support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin available on standard cylinders; 6 or 7-pin on interchangeable core
- Keyways: G keyway standard on standard cylinder; A keyway standard on I/C cylinder
- Latch Bolt: Two-piece stainless steel, anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" hardened steel saw-resistant rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified Functions: Available in 12 or 24 VDC
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000
- UL: 3 hour A label
