Description

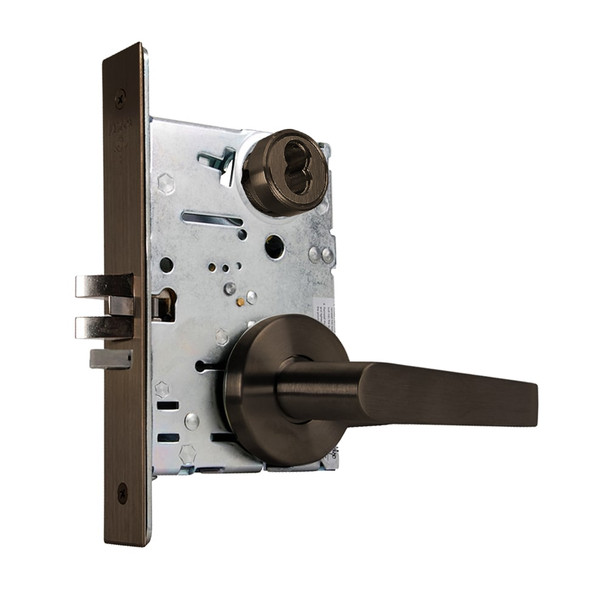

The Falcon MA441B DG 613 is a commercial mortise lock engineered for offices, hospitals, schools, and institutional facilities requiring reliable security and durability. Its heavy-duty construction withstands constant daily use, while the interchangeable core enables quick field re-keying without lock removal, reducing downtime and maintenance costs.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" and features a 2-3/4" backset. It meets ANSI/BHMA 156.13 Series 1000 and carries a UL 3-hour A label for fire-rated applications. Compatible with SFIC products, it simplifies inventory management. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, handing, and electrified configurations.
Specifications
- Brand: Falcon
- Model: MA441B DG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass; 5, 6 or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard; A keyway standard on I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Finishes: Multiple options per Falcon Finishes Chart
- Electrified: Available in 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
- Includes: Two nickel silver keys standard
