Description

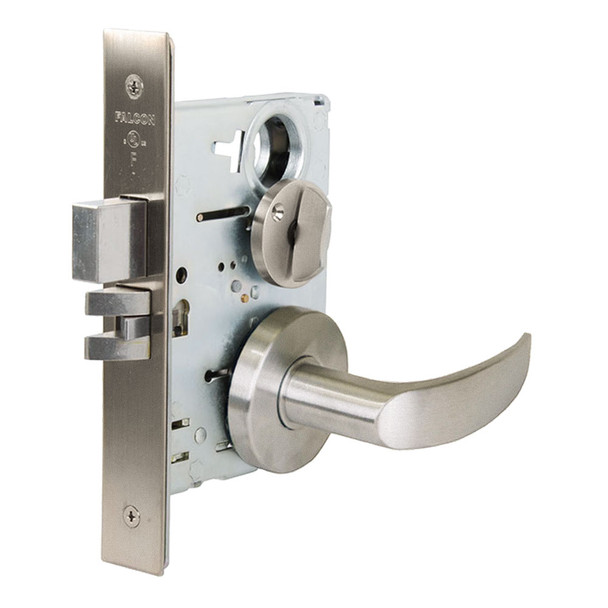

The Falcon MA541B AG 630 is a high-performance mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built to withstand constant use, this lock combines security with reliability, featuring an interchangeable SFIC core for convenient re-keying without removing the lock body.
The MA541B accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and includes a mechanical anti-friction latch and 1" throw dead bolt with saw-resistant rollers. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing, and electrified options. Contact our specialists at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA541B AG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin SFIC
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- ANSI/BHMA: Series 1000
- UL: 3 hour A label
- Electrified: 12 or 24 VDC available
