Description

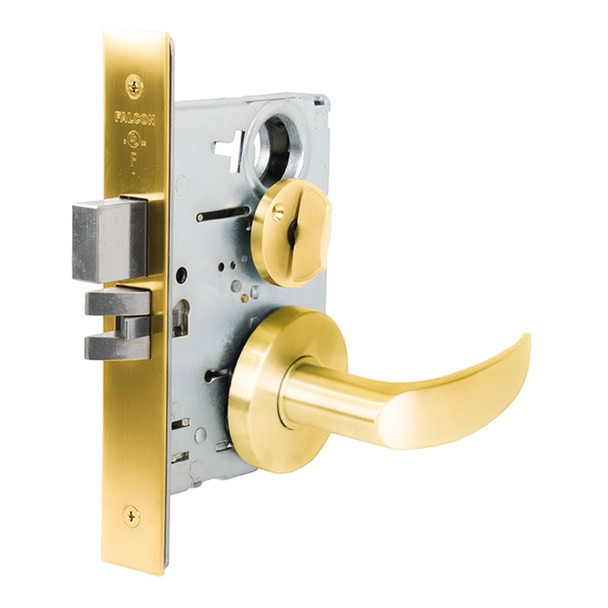

The Falcon MA541B AG 605 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. It combines security with reliability for constant-use applications, featuring an interchangeable SFIC core for quick re-keying and retrofit flexibility without replacing the entire lock body.
Compatible with standard door thicknesses of 1-3/8" to 2-1/2" and available in right or left hand configurations, this lock meets ANSI/BHMA Series 1000 and carries a 3-hour UL label. As an authorized Allegion dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and installation. Contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6 or 7-pin on standard; 6 or 7-pin on interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Handing: Right hand standard; left hand optional, reversible in field
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified Options: 12 or 24 VDC available
