Description

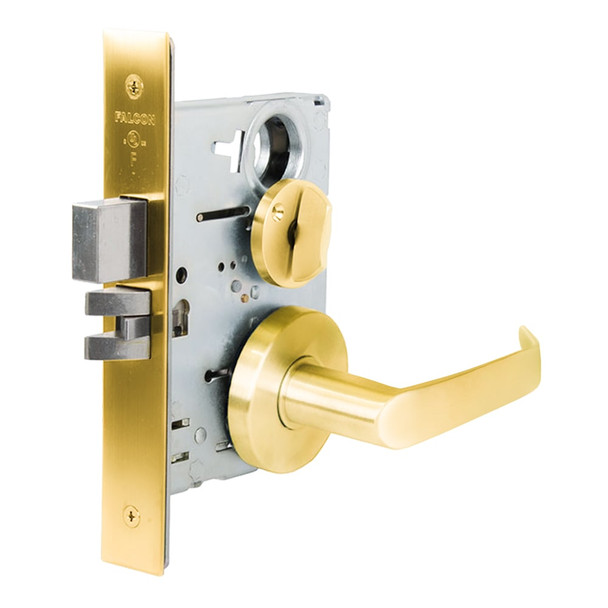

The Falcon MA541L DG 605 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. Its interchangeable core design enables quick re-keying without removing the lock, while the two-piece stainless steel latch and saw-resistant roller dead bolt deliver dependable security through constant daily use.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 standards. It's compatible with SFIC products and available in 12 or 24 VDC electrified functions. As an authorized Allegion dealer, E.D. Locks provides expert guidance on keying options, handing, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA541L DG 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5, 6, or 7-pin options
- Keyways: G keyway (standard), A keyway (I/C), optional keyways available
- Handing: Right hand standard, left hand optional, reversible
- Electrified: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Furnished with two nickel silver keys
