Description

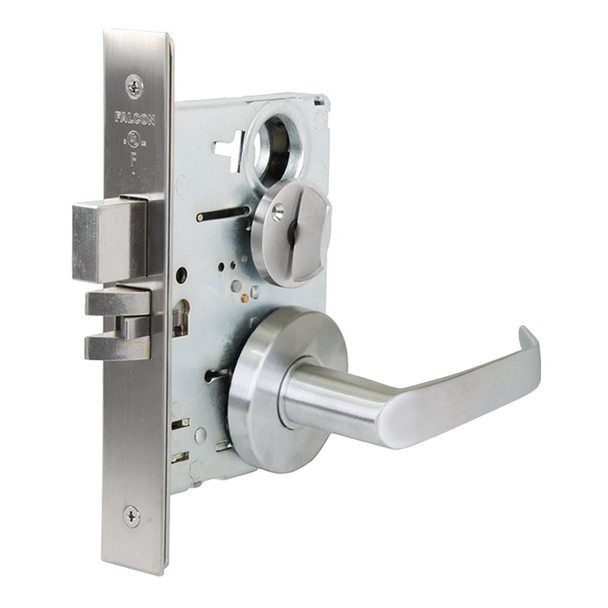

The Falcon MA541L DG 626 is a commercial mortise lock engineered for high-traffic office, hospital, and educational facilities. This durable ANSI/BHMA Series 1000 lock combines a mechanical anti-friction latch with a 1-inch throw dead bolt featuring saw-resistant rollers, delivering reliable security and performance in demanding environments.
This lock accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and features an interchangeable core (SFIC-compatible) for fast re-keying without removing the lock body. Available in multiple finishes and electrified options (12/24 VDC). As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keying, and installation—contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA541L DG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: "G" keyway standard cylinder, "A" keyway I/C cylinder
- Handing: Right hand standard, left hand optional, reversible
- Electrified Functions: Available 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
- Includes: Two nickel silver keys standard
