Description

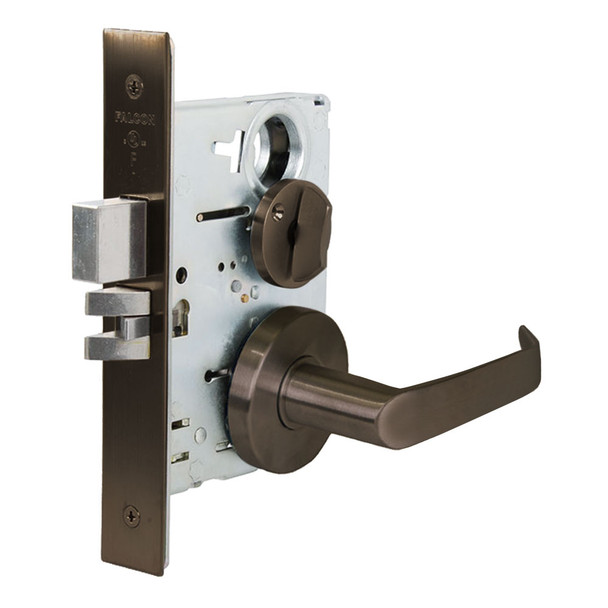

The Falcon MA541L DG 613 is a commercial mortise lock built for high-traffic office, hospital, and education environments. It combines an interchangeable SFIC core with a robust stainless steel deadbolt and latch bolt, delivering reliable security and easy re-keying without downtime or retrofit complications.
This lock fits standard 1-3/8" to 2-1/2" door thickness with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards. It is reversible in the field for left or right hand installation. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and expert installation guidance.
Specifications
- Brand: Falcon
- Model: MA541L DG 613
- Type: Mortise lock with interchangeable core
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on I/C
- Keyways: "G" standard on standard cylinder, "A" standard on I/C
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified functions: Available in 12 or 24 VDC
- Rating: ANSI/BHMA 156.13 Series 1000
- UL rating: 3 hour A label
